基于SpringBoot和Vue3的前后端分离博客

跟着B站上一位UP主过了一遍这个简单的前后端分离的博客项目,其中还有很多细节没太懂,但是记录一下算是学习过的痕迹~

视频地址:https://www.bilibili.com/video/BV1PQ4y1P7hZ

后端

一、新建项目,整合MP

0.新建spring-boot项目

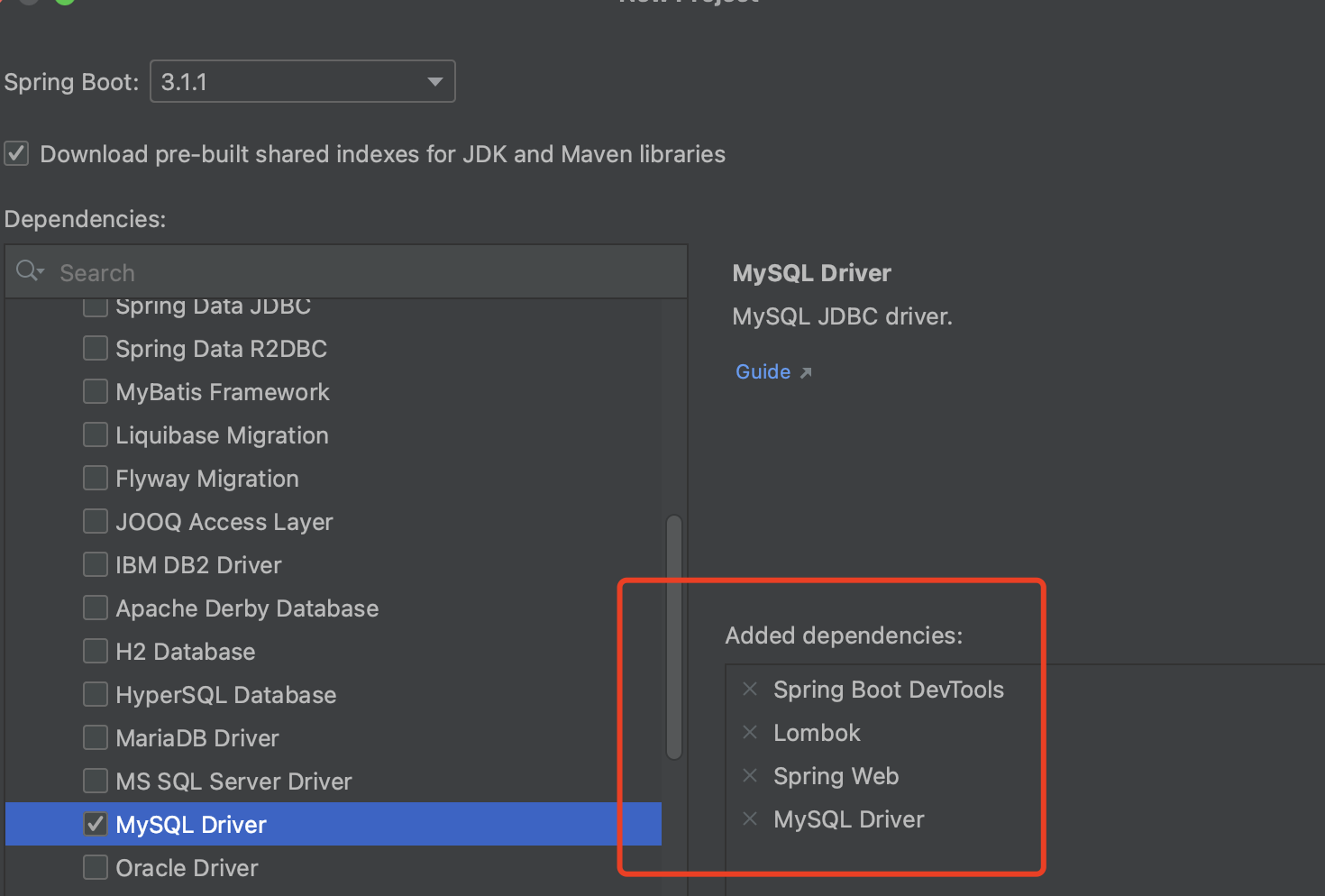

暂时添加下面四个依赖:

image-20230718123737906

1.安装mysql(docker)

https://juejin.cn/post/7043826861272465445

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
docker pull mysql/mysql-server

docker run -p 3306:3306 --name mysql --privileged=true -e MYSQL_ROOT_PASSWORD=123456 -e character-set-server=utf8 -e collation-server=utf8_general_ci -d mysql/mysql-server

# 进入容器
docker exec -it 7b7997b002a8 /bin/sh
# 登录
mysql -u root -p

# 创建数据库和表:执行第二步,然后再执行下面的代码

# 查看权限
select host, user, authentication_string, plugin from mysql.user;
# 设置root权限和访问
update mysql.user set host='%' where user ='root';
grant all privileges on *.* to 'root'@'%' with grant option;
flush privileges;

SHOW GRANTS FOR 'root'@'%';

IDEA测试连接

2.创建数据库和表

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
create database vueblog;

use vueblog;

DROP TABLE IF EXISTS `m_blog`;
/*!40101 SET @saved_cs_client     = @@character_set_client */;
 SET character_set_client = utf8mb4 ;
CREATE TABLE `m_blog` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT,
  `user_id` bigint(20) NOT NULL,
  `title` varchar(255) NOT NULL,
  `description` varchar(255) NOT NULL,
  `content` longtext,
  `created` datetime NOT NULL ON UPDATE CURRENT_TIMESTAMP,
  `status` tinyint(4) DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=21 DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci;
/*!40101 SET character_set_client = @saved_cs_client */;


DROP TABLE IF EXISTS `m_user`;
/*!40101 SET @saved_cs_client     = @@character_set_client */;
 SET character_set_client = utf8mb4 ;
CREATE TABLE `m_user` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT,
  `username` varchar(64) DEFAULT NULL,
  `avatar` varchar(255) DEFAULT NULL,
  `email` varchar(64) DEFAULT NULL,
  `password` varchar(64) DEFAULT NULL,
  `status` int(5) NOT NULL,
  `created` datetime DEFAULT NULL,
  `last_login` datetime DEFAULT NULL,
  PRIMARY KEY (`id`),
  KEY `UK_USERNAME` (`username`) USING BTREE
) ENGINE=InnoDB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8;
/*!40101 SET character_set_client = @saved_cs_client */;


INSERT INTO `vueblog`.`m_user` (`id`, `username`, `avatar`, `email`, `password`, `status`, `created`, `last_login`) VALUES ('1', 'markerhub', 'https://image-1300566513.cos.ap-guangzhou.myqcloud.com/upload/images/5a9f48118166308daba8b6da7e466aab.jpg', NULL, '96e79218965eb72c92a549dd5a330112', '0', '2020-04-20 10:44:01', NULL);

3.导入mybatis plus相关jar包

Pom.xml

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
<!-- 模板引擎-->
<dependency>
  <groupId>org.springframework.boot</groupId>
  <artifactId>spring-boot-starter-freemarker</artifactId>
</dependency>
<!-- https://mvnrepository.com/artifact/com.baomidou/mybatis-plus-boot-starter -->
<dependency>
  <groupId>com.baomidou</groupId>
  <artifactId>mybatis-plus-boot-starter</artifactId>
  <version>LATEST</version>
</dependency>
<!--mybatis-plus代码生成器(版本和mp要一致,不然会报错)-->
<dependency>
  <groupId>com.baomidou</groupId>
  <artifactId>mybatis-plus-generator</artifactId>
  <version>3.5.3.1</version>
</dependency>

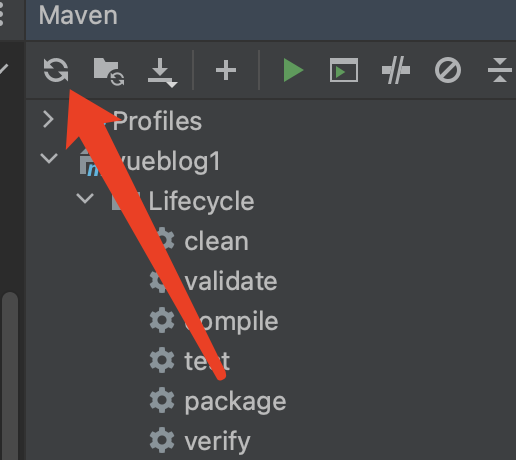

引入新依赖之后需要刷新 maven 依赖,

image-20230718123904053

4.修改application配置文件

注意分清文件格式,这里用的是application.yaml

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
# DataSource Config
spring:
    datasource:
        driver-class-name: com.mysql.cj.jdbc.Driver
        url: jdbc:mysql://localhost:3306/vueblog?useUnicode=true&useSSL=false&characterEncoding=utf8&serverTimezone=Asia/Shanghai
        username: root
        password: 123456

mybatis-plus:
    mapper-locations: classpath*:/mapper/**Mapper.xml

server:
    port: 8081

5.开启mapper接口扫描,添加分页插件

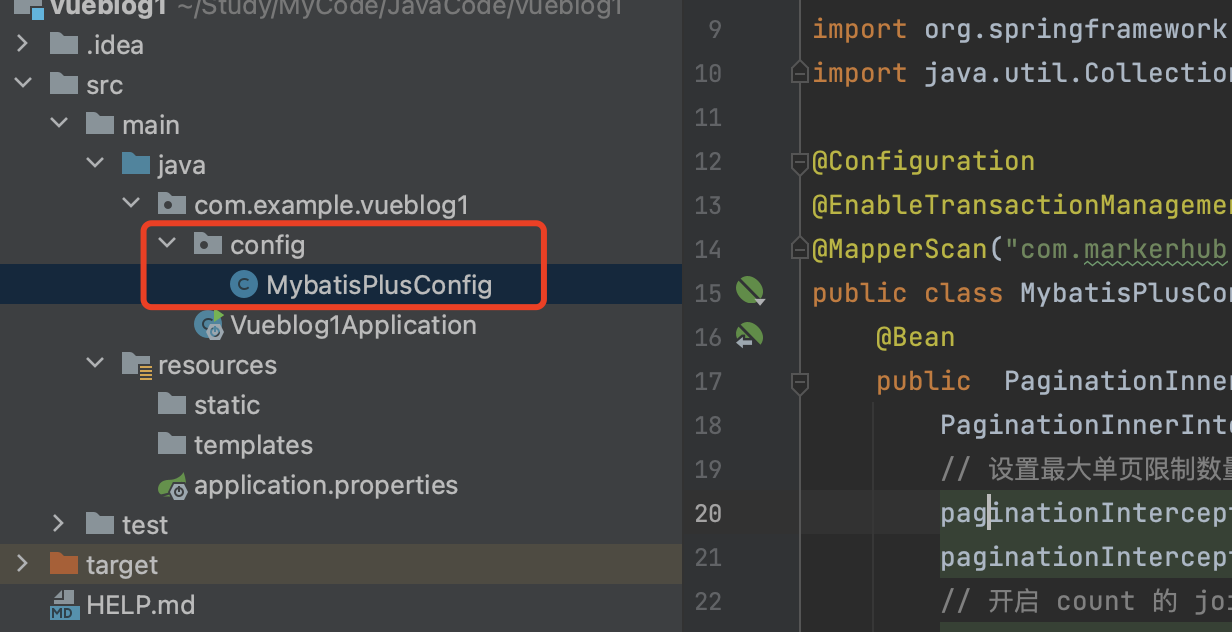

配置分页MybatisPlusConfig

mybatis-plus3.5分页插件使用(PaginationInterceptor):https://blog.csdn.net/moshowgame/article/details/123058673

image-20230718110036073

新版的写法:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
package com.example.vueblog1.config;

import com.baomidou.mybatisplus.annotation.DbType;
import com.baomidou.mybatisplus.extension.plugins.MybatisPlusInterceptor;
import com.baomidou.mybatisplus.extension.plugins.inner.PaginationInnerInterceptor;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.transaction.annotation.EnableTransactionManagement;
import java.util.Collections;

@Configuration
@EnableTransactionManagement
@MapperScan("com.markerhub.mapper")
public class MybatisPlusConfig {
    @Bean
    public  PaginationInnerInterceptor paginationInnerInterceptor() {
        PaginationInnerInterceptor paginationInterceptor = new PaginationInnerInterceptor();
        // 设置最大单页限制数量,默认 500 条,-1 不受限制
        paginationInterceptor.setMaxLimit(-1L);
        paginationInterceptor.setDbType(DbType.MYSQL);
        // 开启 count 的 join 优化,只针对部分 left join
        paginationInterceptor.setOptimizeJoin(true);
        return paginationInterceptor;
    }

    @Bean
    public MybatisPlusInterceptor mybatisPlusInterceptor(){
        MybatisPlusInterceptor mybatisPlusInterceptor = new MybatisPlusInterceptor();
        mybatisPlusInterceptor.setInterceptors(Collections.singletonList(paginationInnerInterceptor()));
        return mybatisPlusInterceptor;
    }

}

旧版的写法:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
package com.example.vueblog.config;

import com.baomidou.mybatisplus.extension.plugins.PaginationInterceptor;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.transaction.annotation.EnableTransactionManagement;

@Configuration
@EnableTransactionManagement
@MapperScan("com.example.vueblog.mapper")
public class MybatisPlusConfig {
    @Bean
    public PaginationInterceptor paginationInterceptor() {
        PaginationInterceptor paginationInterceptor = new PaginationInterceptor();
        return paginationInterceptor;
    }
}

6.生成代码

官方给我们提供了一个代码生成器,然后我写上自己的参数之后,就可以直接根据数据库表信息生成entity、service、serviceImpl、mapper等接口和实现类。

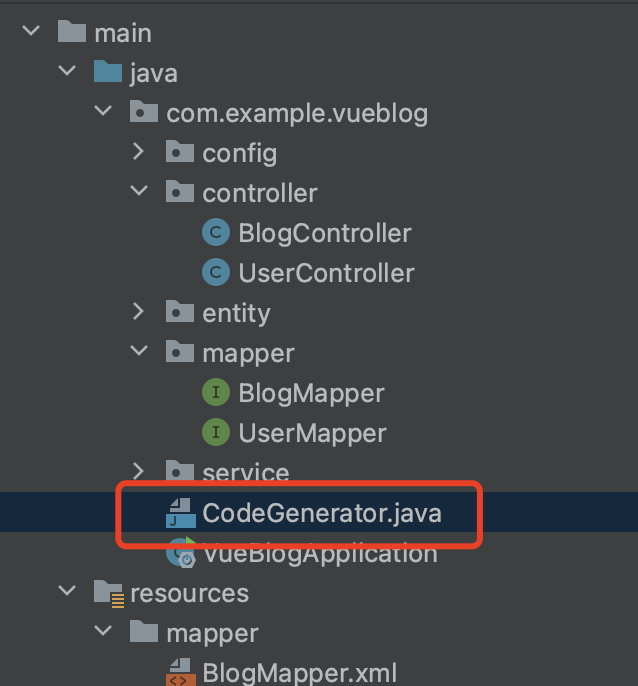

创建CodeGenerator(在com.vueblog包下面)

image-20230718124107613

需要修改文件里面的mysql连接的配置信息和保存的包配置

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
package com.example.vueblog;


import com.baomidou.mybatisplus.core.exceptions.MybatisPlusException;
import com.baomidou.mybatisplus.core.toolkit.StringPool;
import com.baomidou.mybatisplus.core.toolkit.StringUtils;
import com.baomidou.mybatisplus.generator.AutoGenerator;
import com.baomidou.mybatisplus.generator.InjectionConfig;
import com.baomidou.mybatisplus.generator.config.*;
import com.baomidou.mybatisplus.generator.config.po.TableInfo;
import com.baomidou.mybatisplus.generator.config.rules.NamingStrategy;
import com.baomidou.mybatisplus.generator.engine.FreemarkerTemplateEngine;

import java.util.ArrayList;
import java.util.List;
import java.util.Scanner;
// 演示例子,执行 main 方法控制台输入模块表名回车自动生成对应项目目录中
public class CodeGenerator {

    /**
     * <p>
     * 读取控制台内容
     * </p>
     */
    public static String scanner(String tip) {
        Scanner scanner = new Scanner(System.in);
        StringBuilder help = new StringBuilder();
        help.append("请输入" + tip + ":");
        System.out.println(help.toString());
        if (scanner.hasNext()) {
            String ipt = scanner.next();
            if (StringUtils.isNotEmpty(ipt)) {
                return ipt;
            }
        }
        throw new MybatisPlusException("请输入正确的" + tip + "!");
    }


    public static void main(String[] args) {
        // 代码生成器
        AutoGenerator mpg = new AutoGenerator();

        // 全局配置
        GlobalConfig gc = new GlobalConfig();
        String projectPath = System.getProperty("user.dir");
        gc.setOutputDir(projectPath + "/src/main/java");
        // gc.setOutputDir("D:\\test");
        gc.setAuthor("anonymous");
        gc.setOpen(false);
        // gc.setSwagger2(true); 实体属性 Swagger2 注解
        gc.setServiceName("%sService");
        mpg.setGlobalConfig(gc);

        // 数据源配置 数据库名 账号密码
        DataSourceConfig dsc = new DataSourceConfig();
        dsc.setUrl("jdbc:mysql://localhost:3306/vueblog?useUnicode=true&useSSL=false&characterEncoding=utf8&serverTimezone=UTC");
        // dsc.setSchemaName("public");
        dsc.setDriverName("com.mysql.cj.jdbc.Driver");
        dsc.setUsername("root");
        dsc.setPassword("123456");
        mpg.setDataSource(dsc);

        // 包配置
        PackageConfig pc = new PackageConfig();
        pc.setModuleName(null);
        pc.setParent("com.example.vueblog");
        mpg.setPackageInfo(pc);

        // 自定义配置
        InjectionConfig cfg = new InjectionConfig() {
            @Override
            public void initMap() {
                // to do nothing
            }
        };

        // 如果模板引擎是 freemarker
        String templatePath = "/templates/mapper.xml.ftl";
        // 如果模板引擎是 velocity
        // String templatePath = "/templates/mapper.xml.vm";

        // 自定义输出配置
        List<FileOutConfig> focList = new ArrayList<>();
        // 自定义配置会被优先输出
        focList.add(new FileOutConfig(templatePath) {
            @Override
            public String outputFile(TableInfo tableInfo) {
                // 自定义输出文件名 , 如果你 Entity 设置了前后缀、此处注意 xml 的名称会跟着发生变化!
                return projectPath + "/src/main/resources/mapper/"
                        + "/" + tableInfo.getEntityName() + "Mapper" + StringPool.DOT_XML;
            }
        });

        cfg.setFileOutConfigList(focList);
        mpg.setCfg(cfg);

        // 配置模板
        TemplateConfig templateConfig = new TemplateConfig();

        templateConfig.setXml(null);
        mpg.setTemplate(templateConfig);

        // 策略配置
        StrategyConfig strategy = new StrategyConfig();
        strategy.setNaming(NamingStrategy.underline_to_camel);
        strategy.setColumnNaming(NamingStrategy.underline_to_camel);
        strategy.setEntityLombokModel(true);
        strategy.setRestControllerStyle(true);
        strategy.setInclude(scanner("表名,多个英文逗号分割").split(","));
        strategy.setControllerMappingHyphenStyle(true);
        strategy.setTablePrefix("m_");
        mpg.setStrategy(strategy);
        mpg.setTemplateEngine(new FreemarkerTemplateEngine());
        mpg.execute();
    }
}

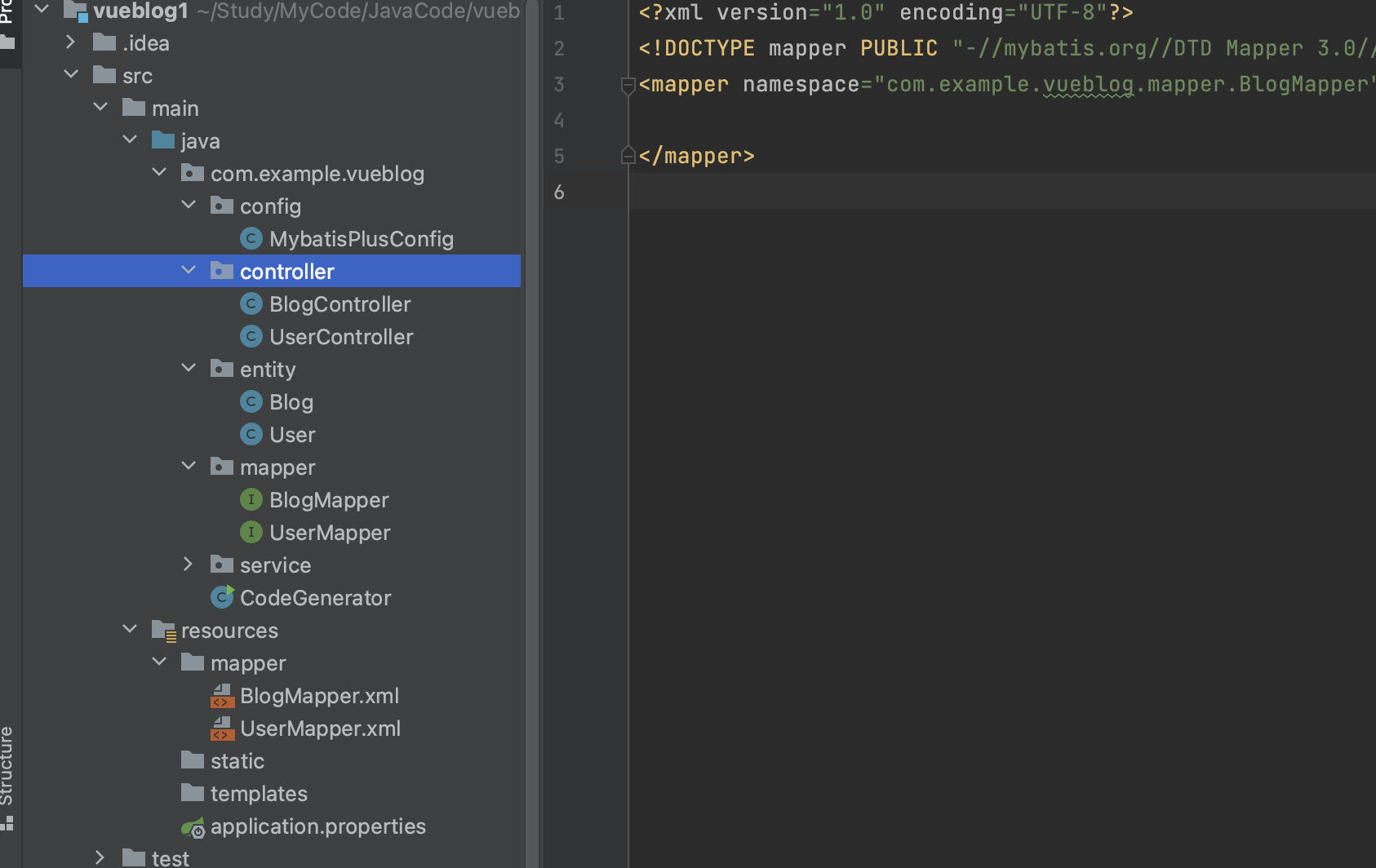

运行这个java文件,生成文件的效果如下:

image-20230718112717050

如果报错,可以考虑一下是不是pom中自动生成的包版本太高,可以考虑降级,生成完毕之后再升级回去即可

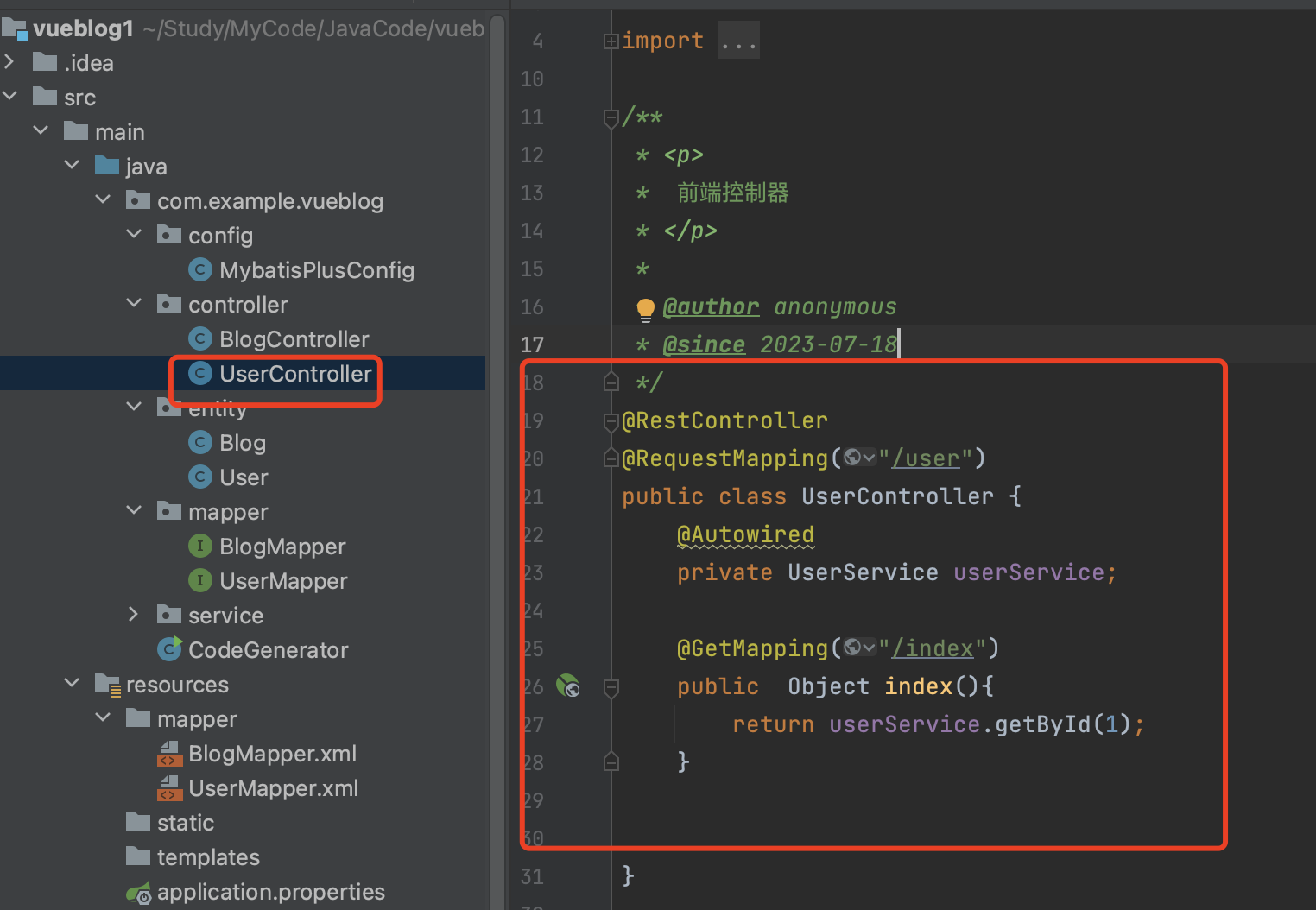

7.测试效果

image-20230718112858961

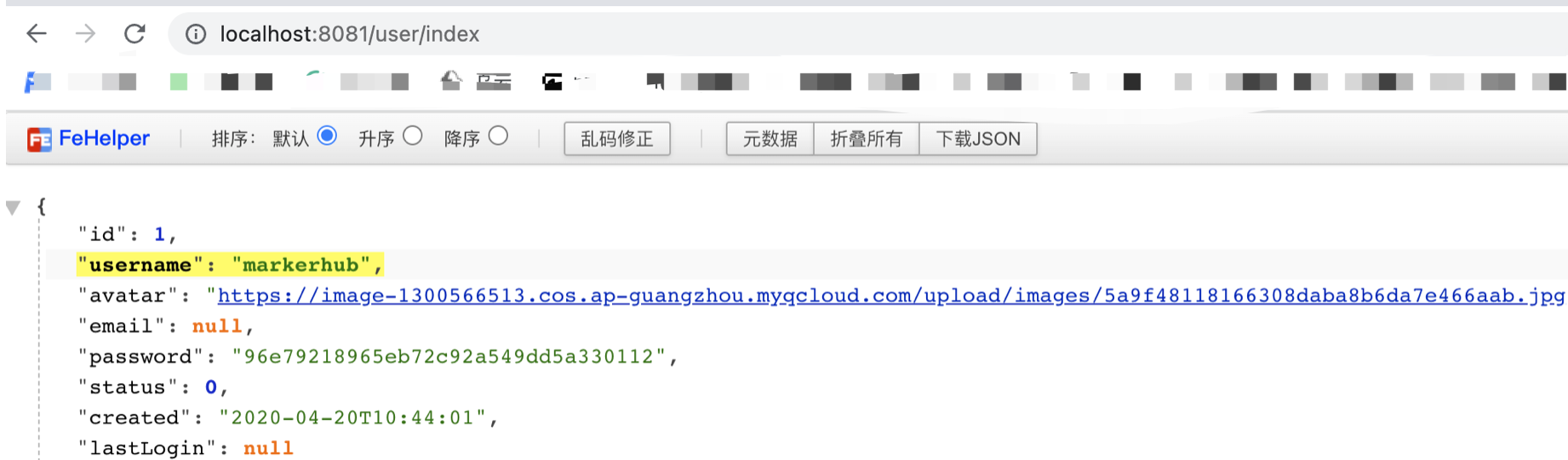

运行项目:

image-20230720185919376

二、统一封装返回结果

这里我们用到了一个Result的类,这个用于我们的异步统一返回的结果封装,方便前后端对接。一般来说,结果里面有几个要素必要的

  • 是否成功,可用code表示(如200表示成功,400表示异常)
  • 结果消息
  • 结果数据

Result类

路径com.vueblog.common.lang;

新建类:

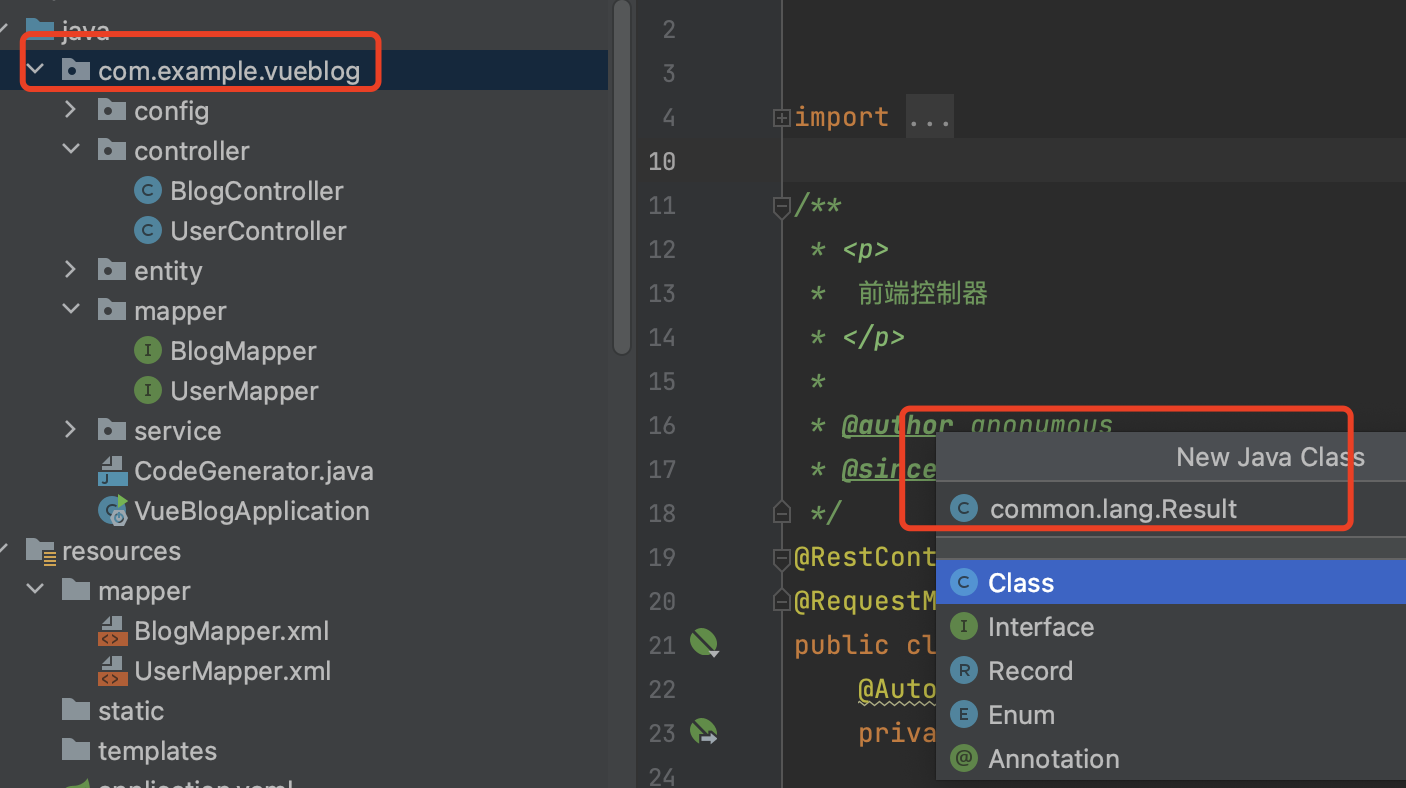

image-20230718124737680

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
package com.example.vueblog.common.lang;
import lombok.Data;
import java.io.Serializable;

@Data
public class Result implements Serializable {
    private int code; //200是正常 400表示异常
    private String msg;
    private Object data;//返回数据

    //定义静态的方法,可以直接调用
    //成功:这个是成功只返回数据的情况
    // 这个也可以用多个构造函数来实现,这个思想用的较多
    public static Result succ( Object data){

        return succ(200,"操作成功",data);
    }
    //成功
    public static Result succ(int code,String msg,Object data){
        Result r = new Result();
        r.setCode(code);
        r.setMsg(msg);
        r.setData(data);
        return r;
    }

    //失败
    public static Result fail(String msg){
        return fail(400,msg,null);
    }
    //失败
    public static Result fail(String msg,Object data){
        return fail(400,msg,data);
    }
    //失败
    public static Result fail(int code,String msg,Object data){
        Result r = new Result();
        r.setCode(code);
        r.setMsg(msg);
        r.setData(data);
        return r;
    }




}

在UserController 中引用测试

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
package com.example.vueblog.controller;


import com.example.vueblog.common.lang.Result;
import com.example.vueblog.entity.User;
import com.example.vueblog.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;

import org.springframework.web.bind.annotation.RestController;

/**
 * <p>
 *  前端控制器
 * </p>
 *
 * @author anonymous
 * @since 2023-07-18
 */
@RestController
@RequestMapping("/user")
public class UserController {
    @Autowired
    private UserService userService;

    @GetMapping("/index")
    public  Object index(){
        User user = userService.getById(1);
        return Result.succ(200,"操作成功", user);
//        return userService.getById(1);
    }


}

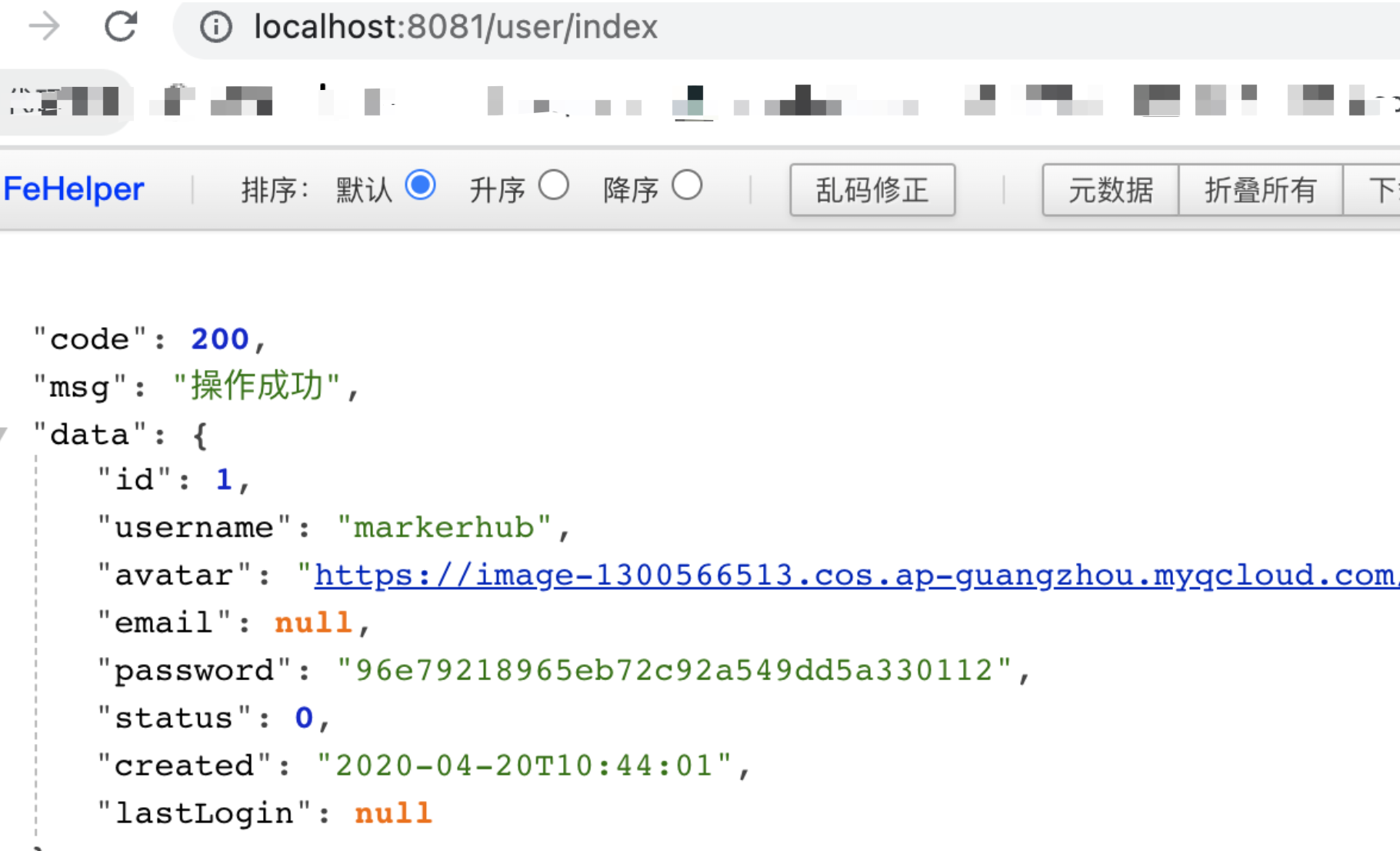

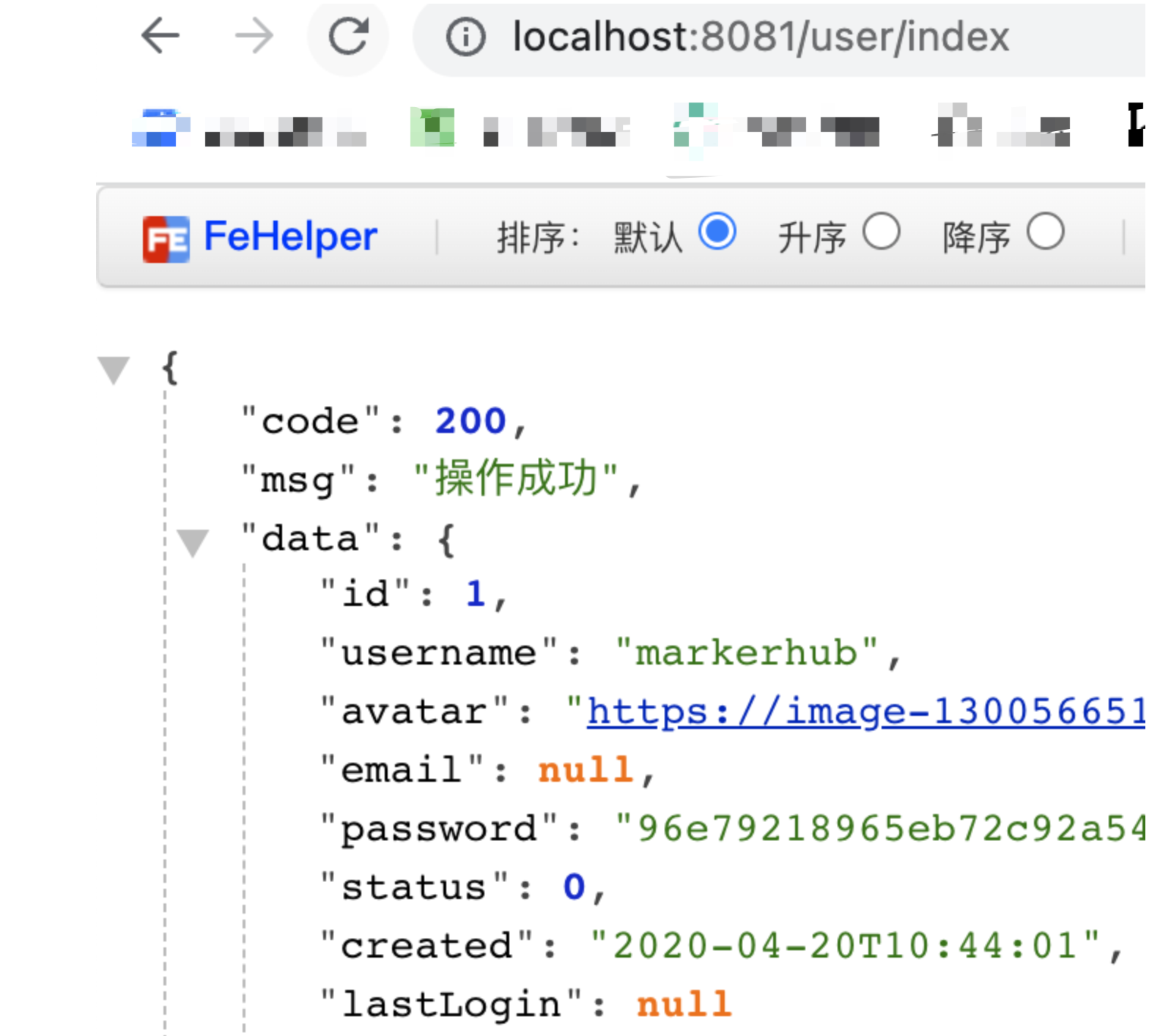

image-20230720185959805

三、整合Shiro+jwt,实现会话共享

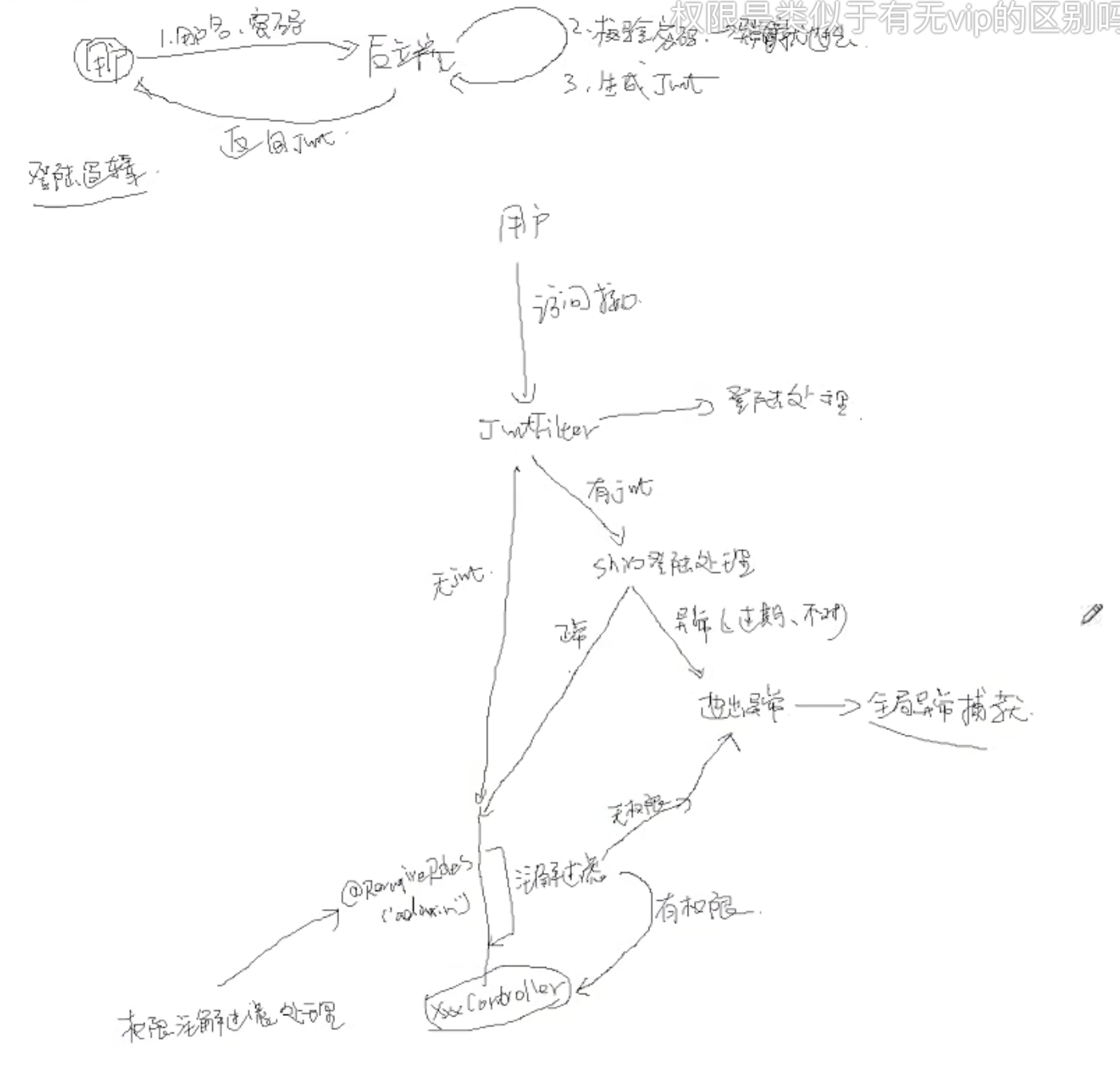

Shiro整合jwt逻辑

image-20230718134929202

用户登录使用jwt生成token,当登录的用户去访问数据时用shiro验证用户是否具有权限。

没有登录的话没有jwt,访问数据时也是shiro判断。

考虑到后面可能需要做集群、负载均衡等,所以就需要会话共享,而shiro的缓存和会话信息,我们一般考虑使用redis来存储这些数据,所以,我们不仅仅需要整合shiro,同时也需要整合redis。在开源的项目中,我们找到了一个starter可以快速整合shiro-redis,配置简单,这里也推荐大家使用。 而因为我们需要做的是前后端分离项目的骨架,所以一般我们会采用token或者jwt作为跨域身份验证解决方案。所以整合shiro的过程中,我们需要引入jwt的身份验证过程。

整合

redis安装:

我也是通过docker安装

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
docker pull redis

docker images

# 启动
docker run -d --name redis -p 6379:6379 redis:latest redis-server --appendonly yes --requirepass "自己设置的密码"
# 说明:redis-server --appendonly yes:在容器执行redis-server启动命令,并打开redis持久化配置


docker ps


# 进入容器
docker exec -ti redis redis-cli

我们使用一个shiro-redis-spring-boot-starter的jar包,具体教程可以看官方文档:https://github.com/alexxiyang/shiro-redis/blob/master/docs/README.md#spring-boot-starter

第一步:导入shiro-redis的starter包:还有jwt的工具包,以及为了简化开发,引入hutool工具包。

pom.xml中导入:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
<!-- shiro-redis -->
<dependency>
  <groupId>org.crazycake</groupId>
  <artifactId>shiro-redis-spring-boot-starter</artifactId>
  <version>3.3.1</version>
</dependency>
<!-- hutool工具类 -->
<dependency>
    <groupId>cn.hutool</groupId>
    <artifactId>hutool-all</artifactId>
    <version>5.8.16</version>
</dependency>

<!-- jwt 生成工具 校验工具-->
<dependency>
  <groupId>io.jsonwebtoken</groupId>
  <artifactId>jjwt</artifactId>
  <version>0.9.1</version>
</dependency>

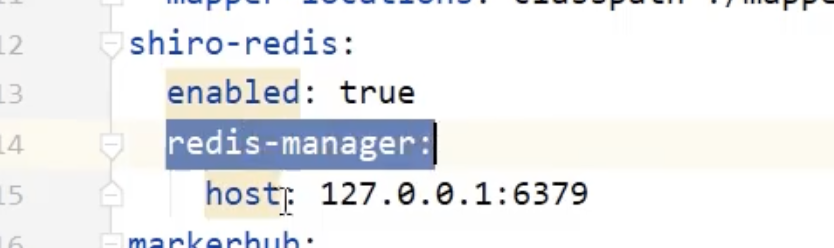

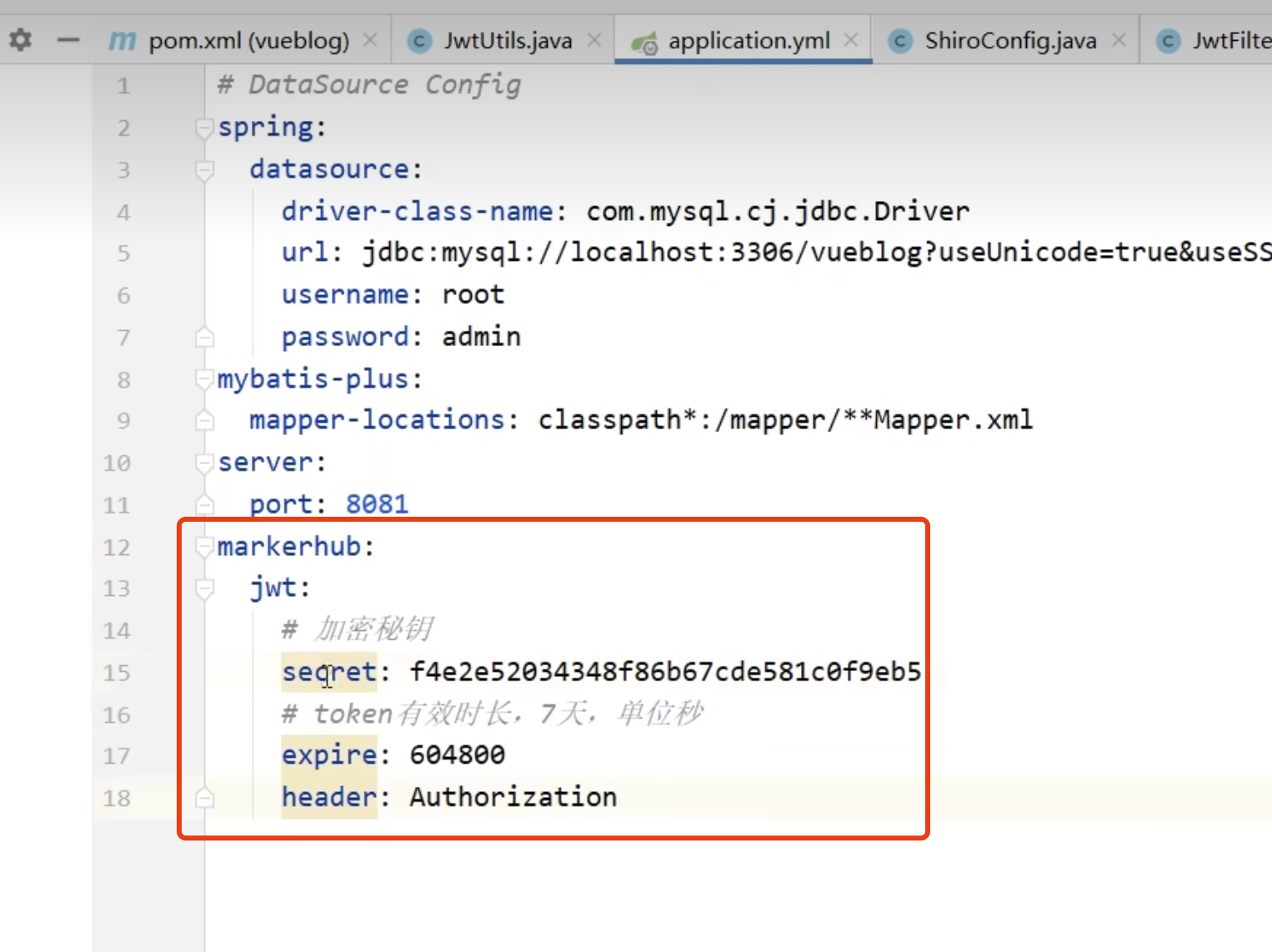

配置文件添加:

image-20230718143408434

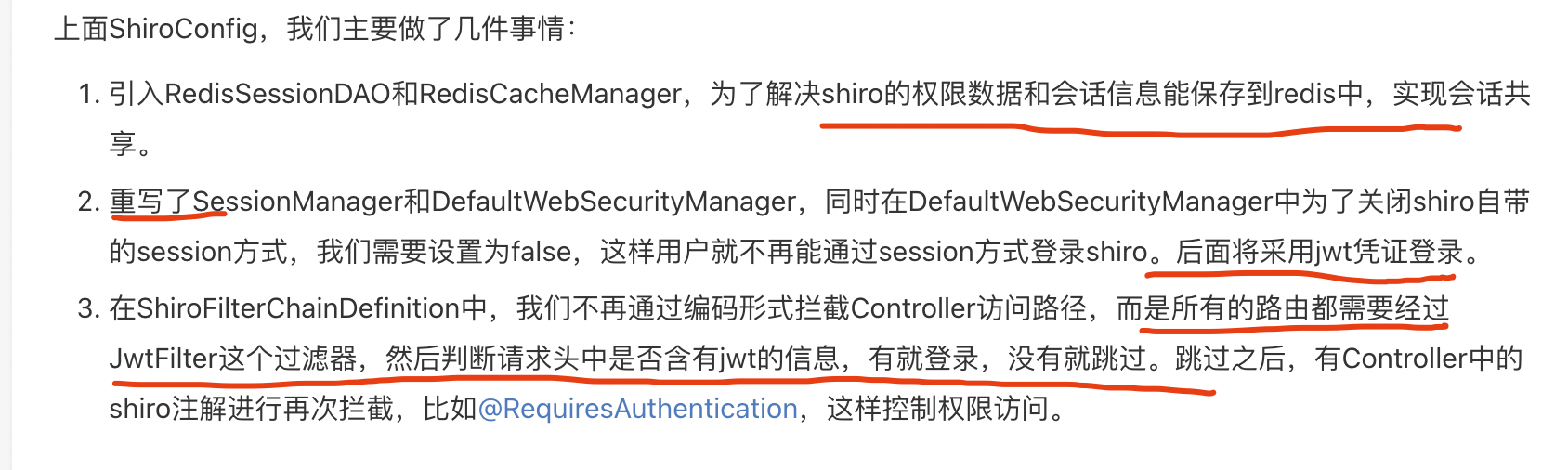

第二步:自定义ShiroConfig

image-20230718151558617

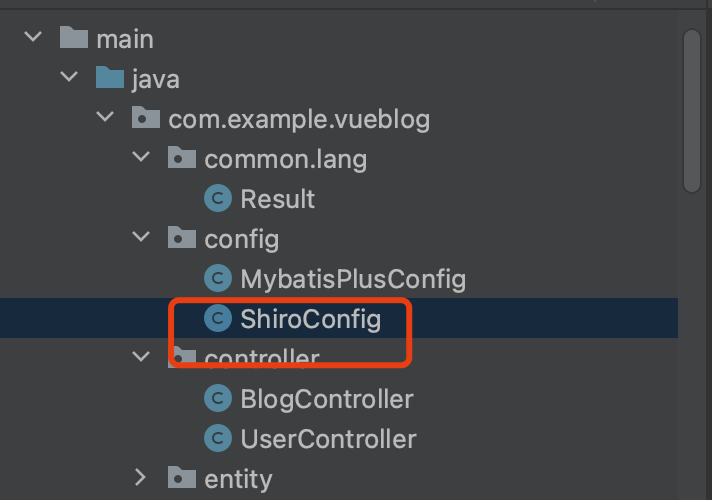

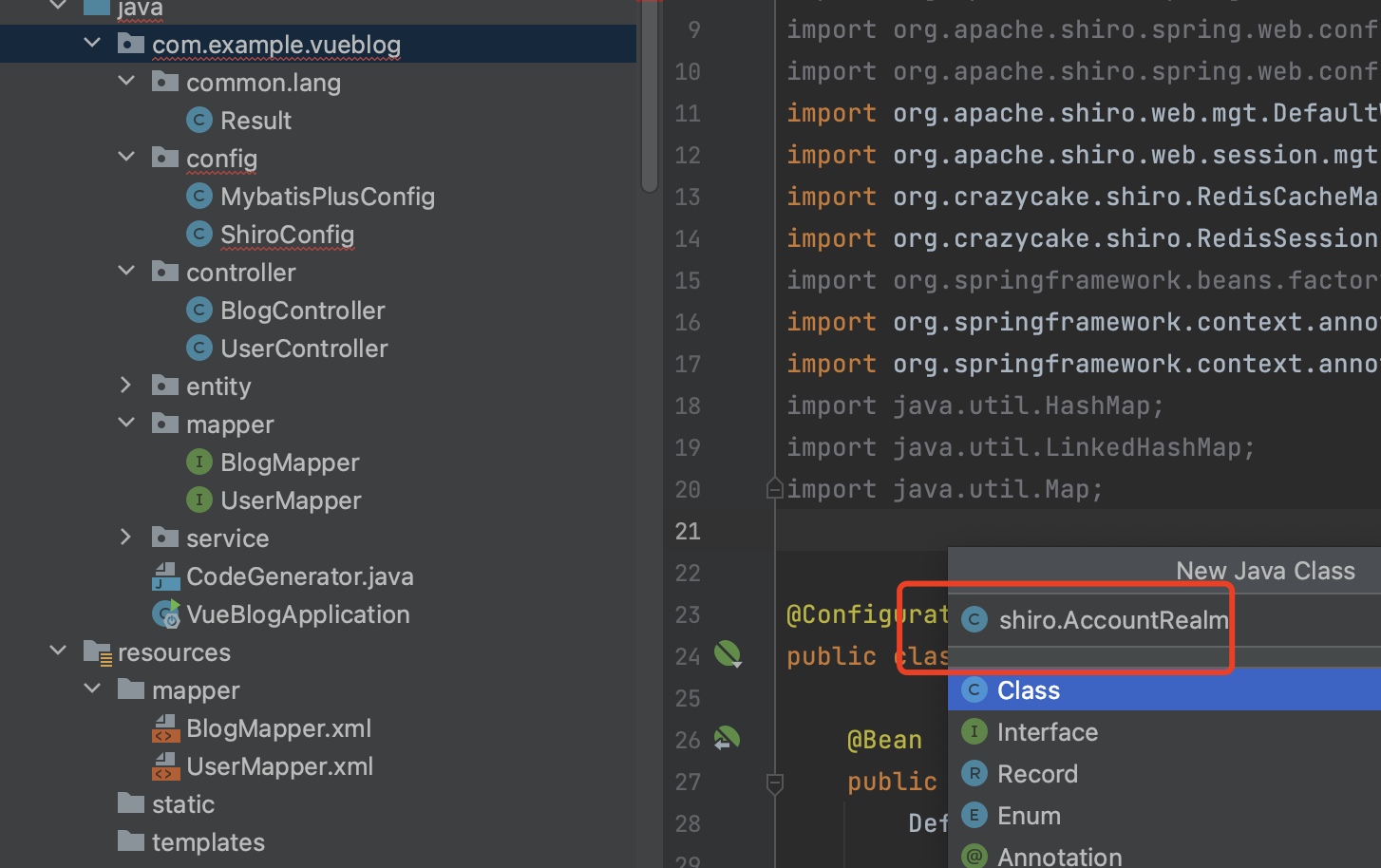

com.example.vueblog.config下新建java类:

image-20230718144952202

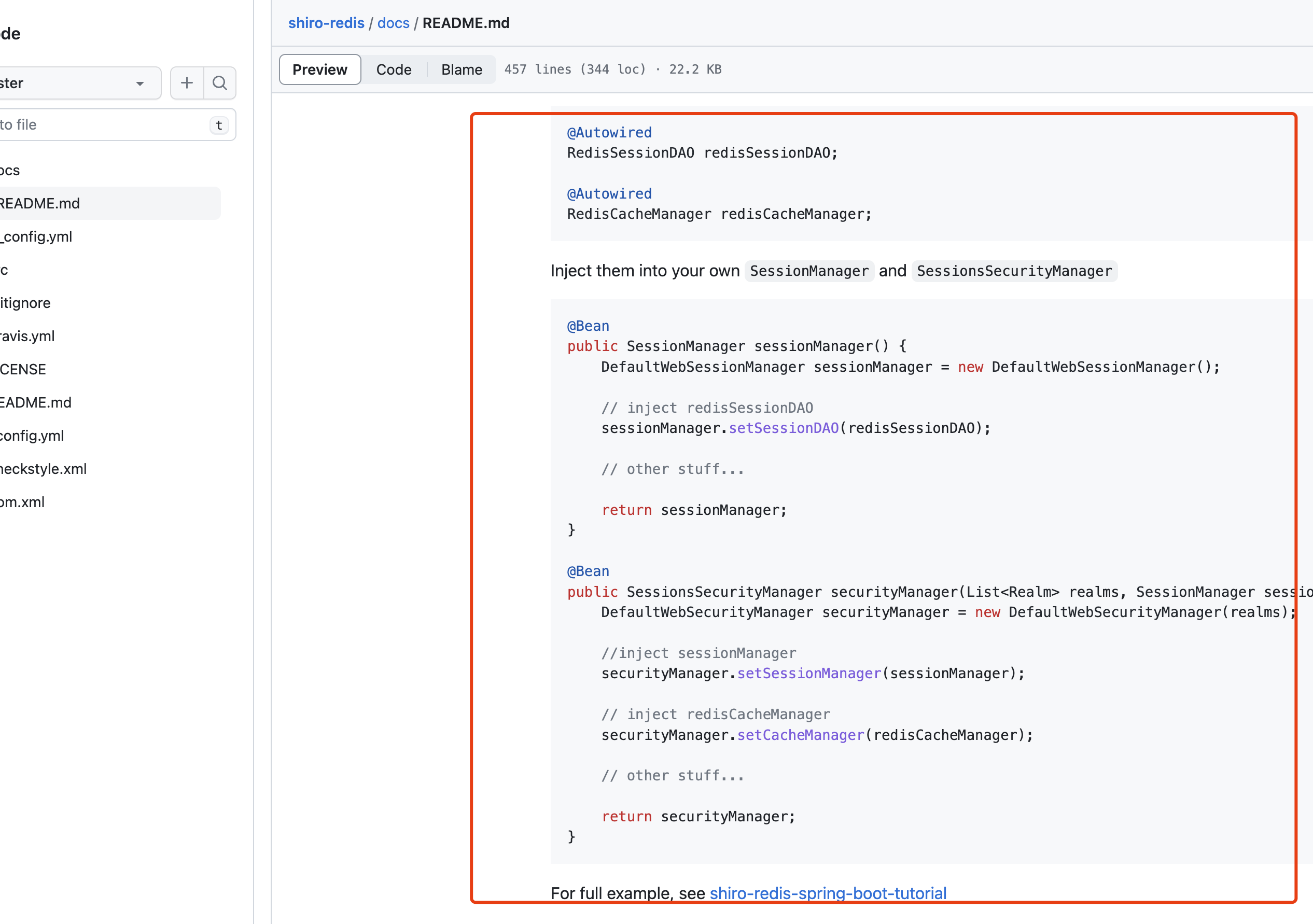

按照官方文档把这些Bean复制下来:

image-20230718141509836

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
package com.example.vueblog.config;

import com.example.vueblog.shiro.AccountRealm;
import com.example.vueblog.shiro.JwtFilter;
import org.apache.shiro.mgt.DefaultSessionStorageEvaluator;
import org.apache.shiro.mgt.DefaultSubjectDAO;
import org.apache.shiro.mgt.SecurityManager;
import org.apache.shiro.session.mgt.SessionManager;
import org.apache.shiro.spring.web.ShiroFilterFactoryBean;
import org.apache.shiro.spring.web.config.DefaultShiroFilterChainDefinition;
import org.apache.shiro.spring.web.config.ShiroFilterChainDefinition;
import org.apache.shiro.web.mgt.DefaultWebSecurityManager;
import org.apache.shiro.web.session.mgt.DefaultWebSessionManager;
import org.crazycake.shiro.RedisCacheManager;
import org.crazycake.shiro.RedisSessionDAO;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import java.util.HashMap;
import java.util.LinkedHashMap;
import java.util.Map;
import javax.servlet.Filter;


/**
 * shiro启用注解拦截控制器
 */
@Configuration
public class ShiroConfig {
    @Autowired
    private JwtFilter jwtFilter;

    @Bean
    public SessionManager sessionManager(RedisSessionDAO redisSessionDAO) {
        DefaultWebSessionManager sessionManager = new DefaultWebSessionManager();
        sessionManager.setSessionDAO(redisSessionDAO);
        return sessionManager;
    }

    @Bean
    public DefaultWebSecurityManager securityManager(AccountRealm accountRealm,
                                                     SessionManager sessionManager,
                                                     RedisCacheManager redisCacheManager) {
//        AccountRealm是我们自己定义的
        DefaultWebSecurityManager securityManager = new DefaultWebSecurityManager(accountRealm);
        securityManager.setSessionManager(sessionManager);
        securityManager.setCacheManager(redisCacheManager);

        /*
         * 关闭shiro自带的session,详情见文档
         */
        DefaultSubjectDAO subjectDAO = new DefaultSubjectDAO();
        DefaultSessionStorageEvaluator defaultSessionStorageEvaluator = new DefaultSessionStorageEvaluator();
        defaultSessionStorageEvaluator.setSessionStorageEnabled(false);
        subjectDAO.setSessionStorageEvaluator(defaultSessionStorageEvaluator);
        securityManager.setSubjectDAO(subjectDAO);
        return securityManager;
    }

    //shiro过滤器链的定义:哪些链接需要经过哪些过滤器
    @Bean
    public ShiroFilterChainDefinition shiroFilterChainDefinition() {
        DefaultShiroFilterChainDefinition chainDefinition = new DefaultShiroFilterChainDefinition();
        Map<String, String> filterMap = new LinkedHashMap<>();

        filterMap.put("/**", "jwt"); // 主要通过注解方式校验权限。所有链接都要经过jwt来校验
        chainDefinition.addPathDefinitions(filterMap);
        return chainDefinition;
    }

    //这些方法用的时候不用自己写,复制根据自己的项目改改就行
    @Bean("shiroFilterFactoryBean")
    public ShiroFilterFactoryBean shiroFilterFactoryBean(SecurityManager securityManager,
                                                         ShiroFilterChainDefinition shiroFilterChainDefinition) {
        ShiroFilterFactoryBean shiroFilter = new ShiroFilterFactoryBean();
        shiroFilter.setSecurityManager(securityManager);

        //然后使用jwt的filter,所有的链接都会经过我们定义的filter
        Map<String, Filter> filters = new HashMap<>();
        filters.put("jwt", jwtFilter);  //这里的jwt路径跟上一个方法是对应的
        shiroFilter.setFilters(filters);

        Map<String, String> filterMap = shiroFilterChainDefinition.getFilterChainMap();

        shiroFilter.setFilterChainDefinitionMap(filterMap);

        return shiroFilter;
    }



}

**note:**SpringBoot3.0变更

  • Spring Boot 3.0 使用 Java 17作为最低版本,如果版本低于17,那么首先要升级你的JDK

  • 另外一个很重要的变化就是本次升级之后,最低只支持 Jakarta EE 9,使用 Servlet5.0 和 JPA3.0 规范,不过最新版本RC2已经升级到了 JakartaEE 10,默认使用 Servlet6.0 和 JPA3.1 规范。 有些同学可能连 Jakarta 是什么都不知道,这个英文单词是印尼首都雅加达的意思,其实就是我们知道的 JavaEE 改名之后就叫 JakartaEE,比如我们之前的 javax.servlet 包现在就叫 jakarta.servlet

1
2
3
import javax.servlet.http.HttpServletRequest;
// 改为
import jakarta.servlet.http.HttpServletRequest;

但是继承 extends AuthenticatingFilter需要重写方法的参数是javax.servlet.http.HttpServletRequest。。。很尴尬

**解决方法:**https://stackoverflow.com/questions/75838823/apache-shiro-encountering-java-lang-noclassdeffounderror-javax-servlet-filter-w

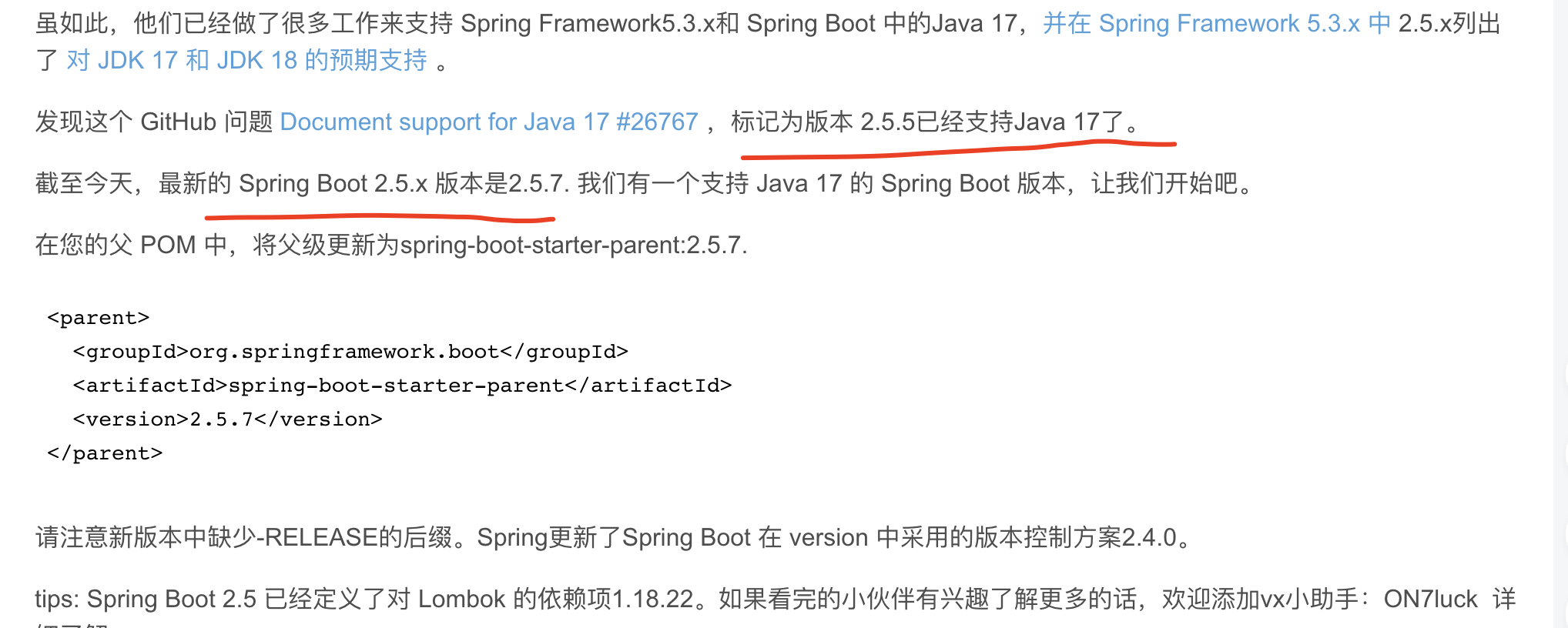

**解决方法(有效):**换成SpringBoot2

https://blog.csdn.net/javamaxiaojing/article/details/122052030

image-20230718223901030

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.5.7</version>
<!--        <version>3.1.1</version>-->
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.example</groupId>
    <artifactId>vueblog1</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>vueblog</name>
    <description>vueblog</description>
    <properties>
        <java.version>17</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

<!--        模板引擎-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-freemarker</artifactId>
        </dependency>
        <!-- https://mvnrepository.com/artifact/com.baomidou/mybatis-plus-boot-starter -->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>LATEST</version>
        </dependency>
        <!--mybatis-plus代码生成器-->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-generator</artifactId>
<!--            <version>3.5.3.1</version>-->
            <version>3.2.0</version>
        </dependency>

        <!-- shiro-redis -->
        <dependency>
            <groupId>org.crazycake</groupId>
            <artifactId>shiro-redis-spring-boot-starter</artifactId>
<!--            <version>3.3.1</version>-->
            <version>3.2.1</version>
<!--            <classifier>jakarta</classifier>-->
        </dependency>
        <!-- hutool工具类 -->
        <dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
<!--            <version>5.8.16</version>-->
            <version>5.3.3</version>
        </dependency>

        <!-- jwt 生成工具 校验工具-->
        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt</artifactId>
            <version>0.9.1</version>
        </dependency>






    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <excludes>
                        <exclude>
                            <groupId>org.projectlombok</groupId>
                            <artifactId>lombok</artifactId>
                        </exclude>
                    </excludes>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>

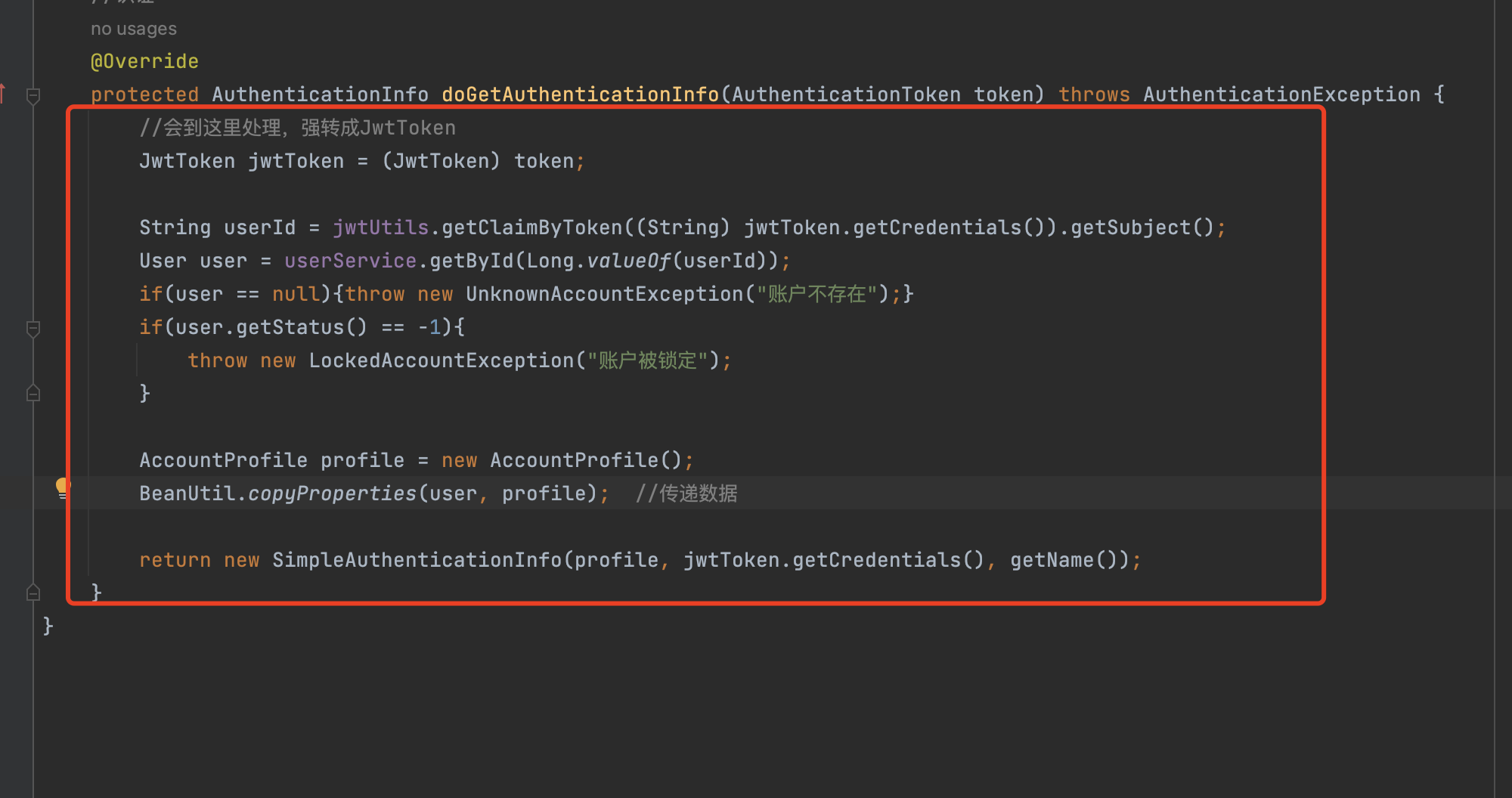

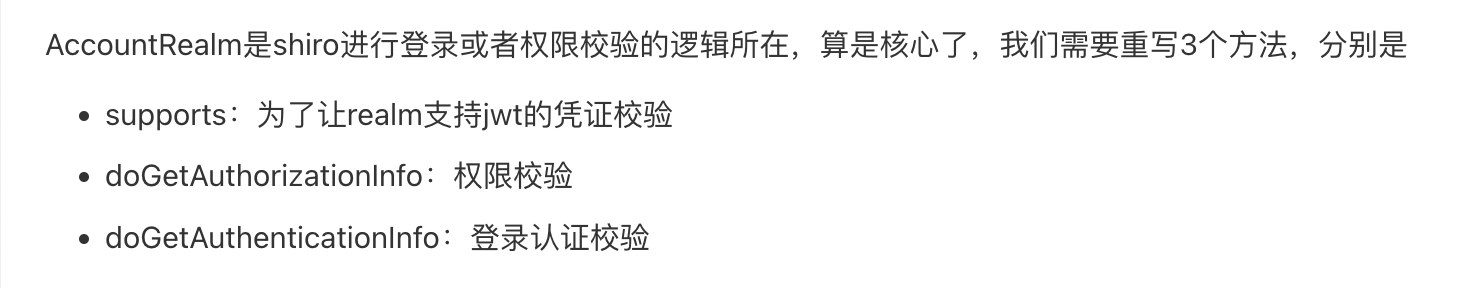

第四步:创建AccountRealm

image-20230718151645659

放到com.example.vueblog.shiro路径下

image-20230718145935719

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
package com.example.vueblog.shiro;

import org.apache.shiro.authc.AuthenticationException;
import org.apache.shiro.authc.AuthenticationInfo;
import org.apache.shiro.authc.AuthenticationToken;
import org.apache.shiro.authz.AuthorizationInfo;
import org.apache.shiro.realm.AuthorizingRealm;
import org.apache.shiro.subject.PrincipalCollection;
import org.springframework.stereotype.Component;

@Component
public class AccountRealm extends AuthorizingRealm {
    //继承AuthorizingRealm,重写方法
    //为了让realm支持jwt的凭证校验token
    @Override
    public boolean supports(AuthenticationToken token) {
        return token instanceof JwtToken;
    }

    //授权
    @Override
    protected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection principalCollection) {
        return null;
    }

    //认证
    @Override
    protected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken token) throws AuthenticationException {
        //会到这里处理,强转成JwtToken
        JwtToken jwtToken = (JwtToken) token;
        return null;
    }
}

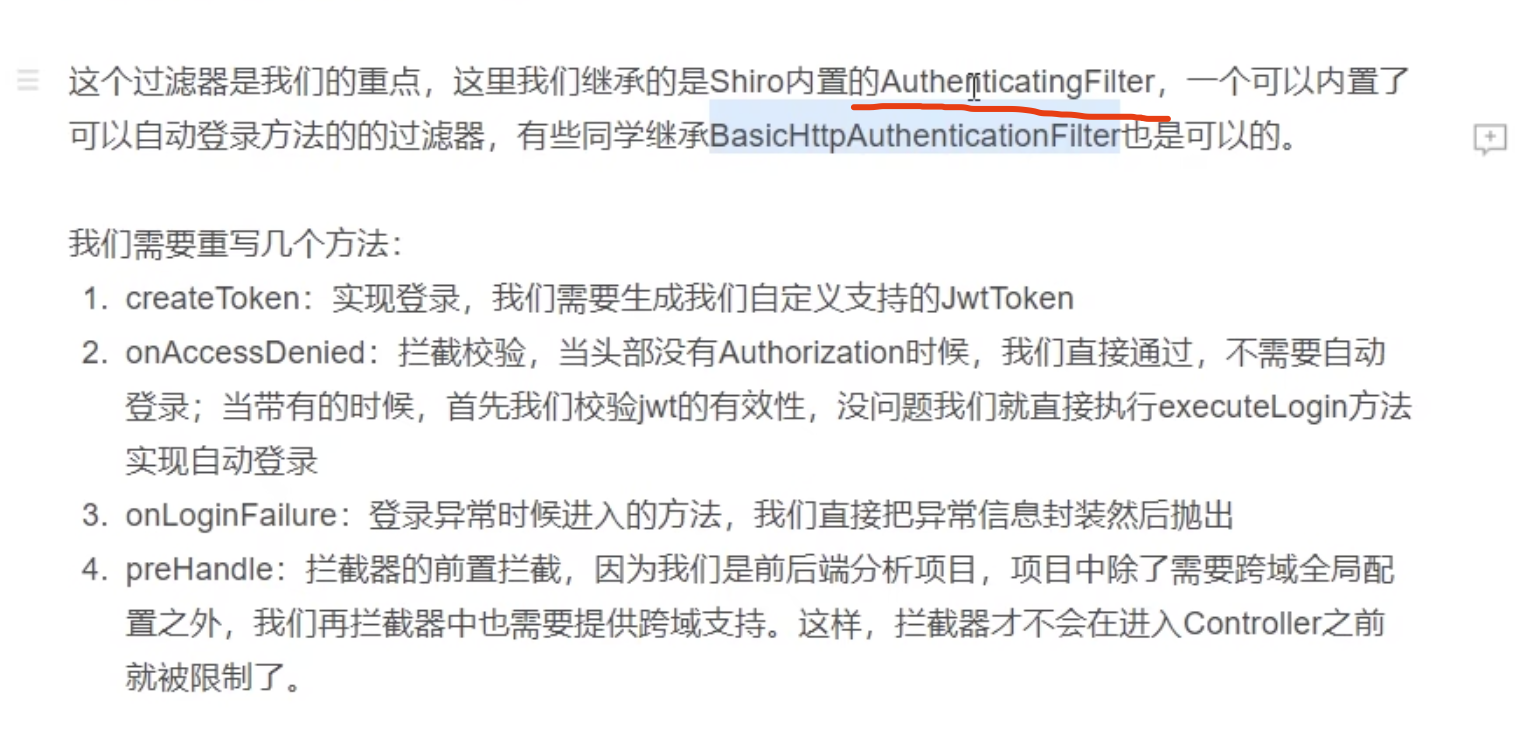

第五步:创建JwtFilter

image-20230718140934456

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
package com.example.vueblog.shiro;

import cn.hutool.http.server.HttpServerRequest;
import cn.hutool.json.JSONUtil;
import com.baomidou.mybatisplus.core.toolkit.StringUtils;
import com.example.vueblog.common.lang.Result;
import com.example.vueblog.util.JwtUtils;
import io.jsonwebtoken.Claims;


import org.apache.shiro.authc.AuthenticationException;
import org.apache.shiro.authc.AuthenticationToken;
import org.apache.shiro.authc.ExpiredCredentialsException;
import org.apache.shiro.web.filter.authc.AuthenticatingFilter;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

import javax.servlet.ServletRequest;
import javax.servlet.ServletResponse;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;


@Component
public class JwtFilter extends AuthenticatingFilter {
    //继承shiro内置的过滤器AuthenticatingFilter。重写两个方法
    @Autowired
    JwtUtils jwtUtils;
    //验证token
    @Override
    protected AuthenticationToken createToken(ServletRequest servletRequest, ServletResponse servletResponse) throws Exception {
        //从header中获取jwt信息,封装成成自定义的token
        HttpServletRequest request = (HttpServletRequest)servletRequest;
        //获取头部token
        String jwt = request.getHeader("Authorization");
        if(StringUtils.isEmpty(jwt)){
            return null;
        }
        return new JwtToken(jwt);
        //创建token后,会交给shiro进行登录subject.log(),会委托到我们的Realm处理
    }

    // createToken之后会来到onAccessDenied拦截
    @Override
    protected boolean onAccessDenied(ServletRequest servletRequest, ServletResponse servletResponse) throws Exception {
        HttpServletRequest request = (HttpServletRequest)servletRequest;
        //获取头部token
        String jwt = request.getHeader("Authorization");
        if(StringUtils.isEmpty(jwt)){
            return true;
        }else{
            // 先校验jwt
            Claims claims = jwtUtils.getClaimByToken(jwt);
            //校验是否为空和时间是否过期
            if(claims == null || jwtUtils.isTokenExpired(claims.getExpiration())){
                throw new ExpiredCredentialsException("token已失效,请重新登录");
            }
            //执行登录处理
            return executeLogin(servletRequest,servletResponse);
        }
    }
    //捕捉错误重写方法返回Result
    @Override
    protected boolean onLoginFailure(AuthenticationToken token, AuthenticationException e, ServletRequest request, ServletResponse response) {
        HttpServletResponse httpServletResponse = (HttpServletResponse) response;

        Throwable throwable = e.getCause() == null ? e : e.getCause();

        Result result = Result.fail(throwable.getMessage());
        //返回json
        String json = JSONUtil.toJsonStr(result);
        try {
            //打印json
            httpServletResponse.getWriter().print(json);
        }catch (IOException ioException){

        }

        return false;
    }

}

第五步:创建JwtToken

所以我们需要自定义token,需要继承shiro的AuthenticationToken

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
package com.vueblog.shiro;

import org.apache.shiro.authc.AuthenticationToken;

public class JwtToken implements AuthenticationToken {
    private String token;

    public JwtToken(String jwt){
        this.token = jwt;
    }

    @Override
    public Object getPrincipal() {
        return token;
    }

    @Override
    public Object getCredentials() {
        return token;
    }
}

第六步:创建JwtUtils

JwtUtils是个生成和校验jwt的工具类,其中有些jwt相关的密钥信息是从项目配置文件中配置的

需要配置application.yaml:

image-20230718142244848

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
shiro-redis:
  enabled: true
  redis-manager:
    host: 127.0.0.1:6379

markerhub:
  jwt:
    # 加密秘钥
    secret: f4e2e52034348f86b67cde581c0f9eb5
    # token有效时长,7天,单位秒
    expire: 604800
    header: token

下面的prefix跟上面的配置文件一致:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
package com.vueblog.util;

import io.jsonwebtoken.Claims;
import io.jsonwebtoken.Jwts;
import io.jsonwebtoken.SignatureAlgorithm;
import lombok.Data;
import lombok.extern.slf4j.Slf4j;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.stereotype.Component;

import java.util.Date;

/**
 * jwt工具类
 */
@Slf4j
@Data
@Component
@ConfigurationProperties(prefix = "markerhub.jwt")
public class JwtUtils {

    private String secret;
    private long expire;
    private String header;

    /**
     * 生成jwt token
     */
    public String generateToken(long userId) {
        Date nowDate = new Date();
        //过期时间
        Date expireDate = new Date(nowDate.getTime() + expire * 1000);

        return Jwts.builder()
                .setHeaderParam("typ", "JWT")
                .setSubject(userId+"")
                .setIssuedAt(nowDate)
                .setExpiration(expireDate)
                .signWith(SignatureAlgorithm.HS512, secret)
                .compact();
    }

  	//进行校验
    public Claims getClaimByToken(String token) {
        try {
            return Jwts.parser()
                    .setSigningKey(secret)
                    .parseClaimsJws(token)
                    .getBody();
        }catch (Exception e){
            log.debug("validate is token error ", e);
            return null;
        }
    }

    /**
     * token是否过期
     * @return  true:过期
     */
    public boolean isTokenExpired(Date expiration) {
        return expiration.before(new Date());
    }
}

第七步:创建spring-devtools.properties

resources/WETA-INF目录下创建spring-devtools.properties内容为:

1
restart.include.shiro-redis=/shiro-[\\w-\\.]+jar

四、shiro逻辑开发

小提示:登录调用AccountRealm类下面的doGetAuthenticationInfo

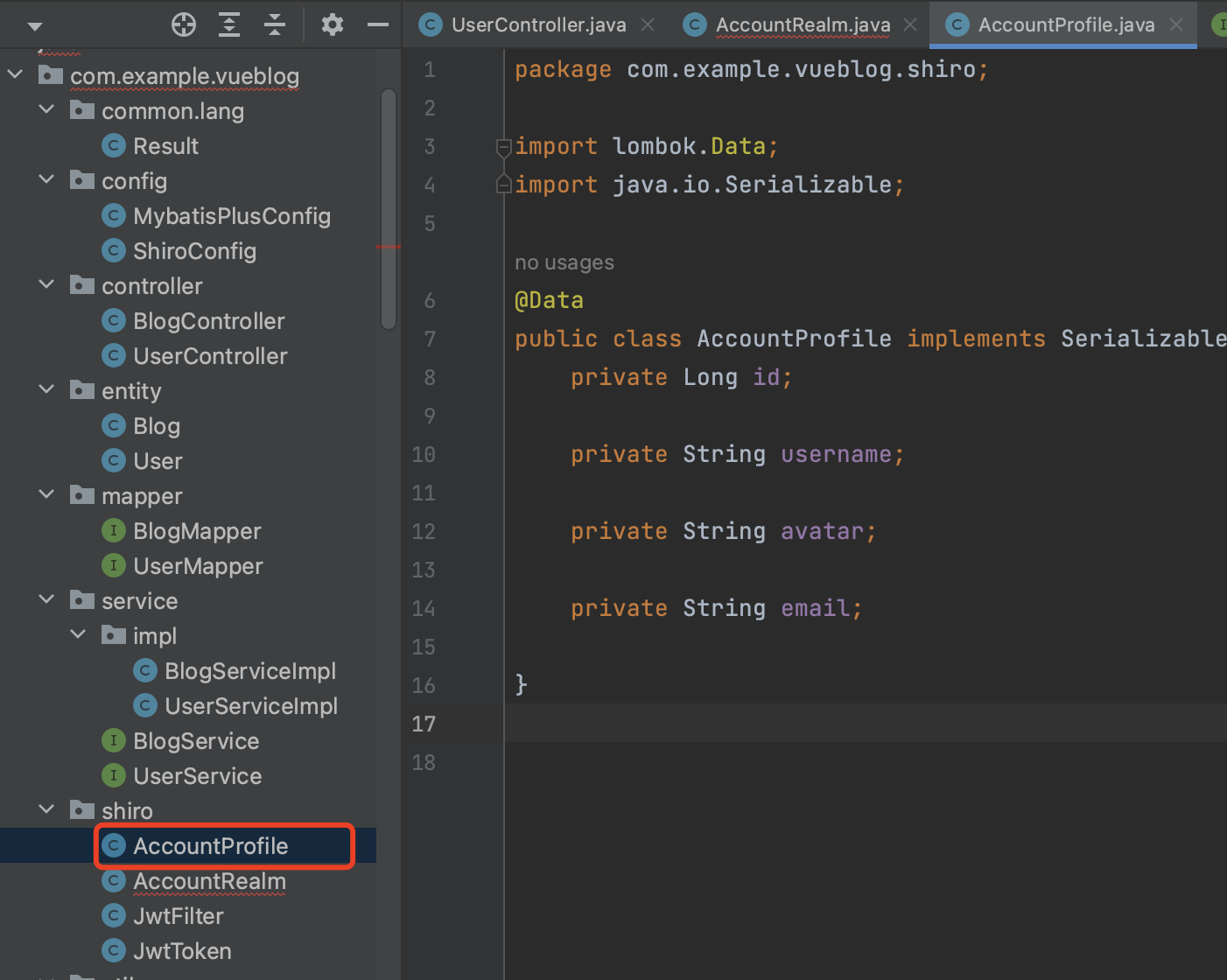

创建类AccountProfile 用于传递用户可以公开的数据

image-20230718233431598

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
package com.example.vueblog.shiro;

import lombok.Data;

import java.io.Serializable;

@Data
public class AccountProfile implements Serializable {
    private Long id;

    private String username;

    private String avatar;

    private String email;

}

完善AccountRealm

image-20230718233713220

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
package com.example.vueblog.shiro;

import cn.hutool.core.bean.BeanUtil;
import com.example.vueblog.entity.User;
import com.example.vueblog.service.UserService;
import com.example.vueblog.util.JwtUtils;
import org.apache.shiro.authc.*;
import org.apache.shiro.authz.AuthorizationInfo;
import org.apache.shiro.realm.AuthorizingRealm;
import org.apache.shiro.subject.PrincipalCollection;
import org.springframework.beans.BeanUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

@Component
public class AccountRealm extends AuthorizingRealm {
    @Autowired
    JwtUtils jwtUtils;

    @Autowired
    UserService userService;

    //继承AuthorizingRealm,重写方法
    //为了让realm支持jwt的凭证校验token
    @Override
    public boolean supports(AuthenticationToken token) {
        return token instanceof JwtToken;
    }

    //授权
    @Override
    protected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection principalCollection) {
        return null;
    }

    //认证
    @Override
    protected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken token) throws AuthenticationException {
        //会到这里处理,强转成JwtToken
        JwtToken jwtToken = (JwtToken) token;

        String userId = jwtUtils.getClaimByToken((String) jwtToken.getCredentials()).getSubject();
        User user = userService.getById(Long.valueOf(userId));
        if(user == null){throw new UnknownAccountException("账户不存在");}
        if(user.getStatus() == -1){
            throw new LockedAccountException("账户被锁定");
        }

        AccountProfile profile = new AccountProfile();
        BeanUtil.copyProperties(user, profile);  //传递数据

        return new SimpleAuthenticationInfo(profile, jwtToken.getCredentials(), getName());
    }
}

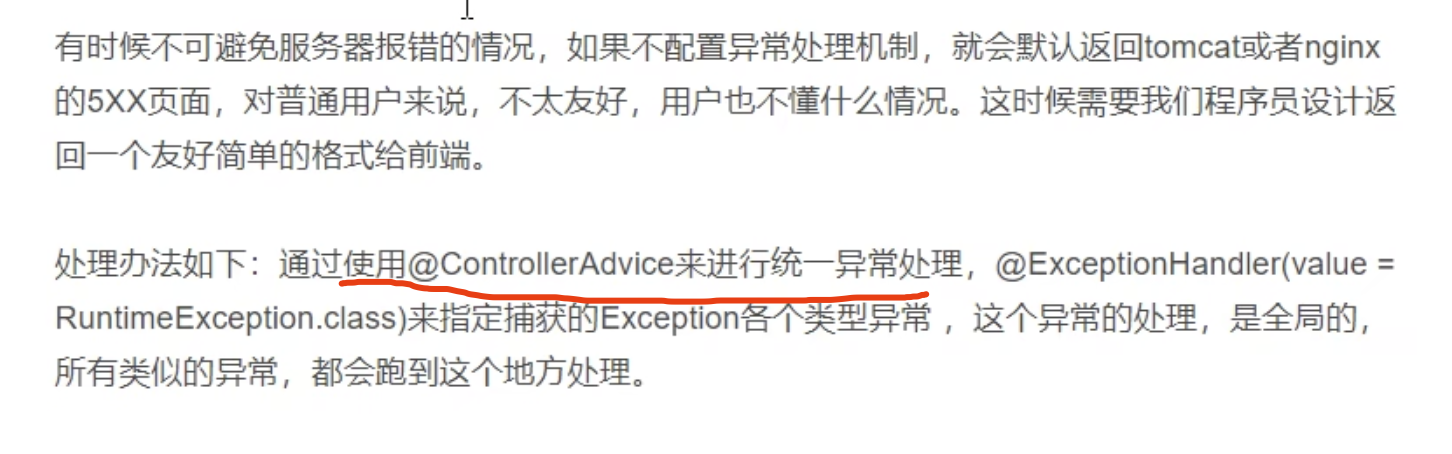

五、异常处理

image-20230719110455325

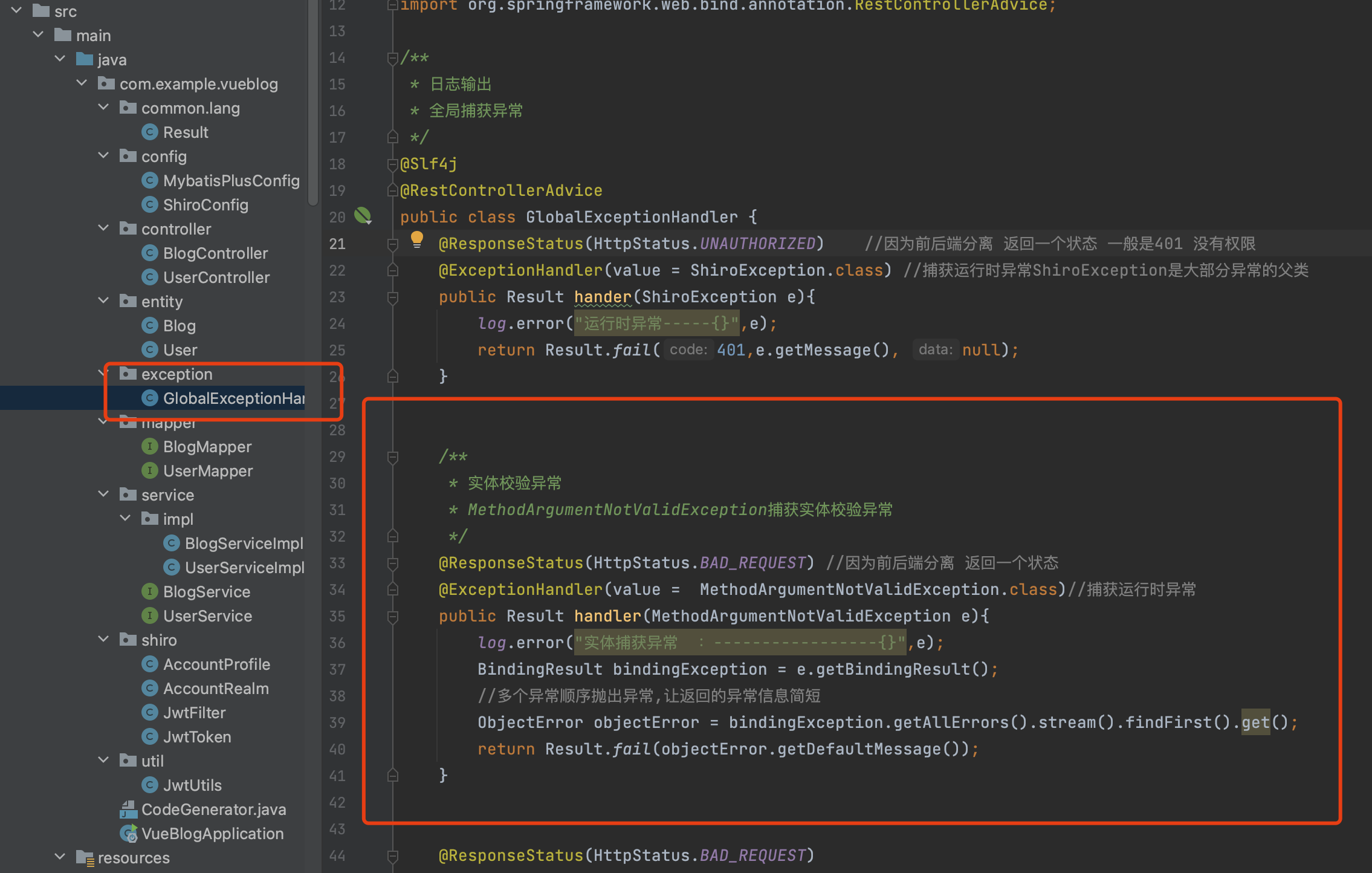

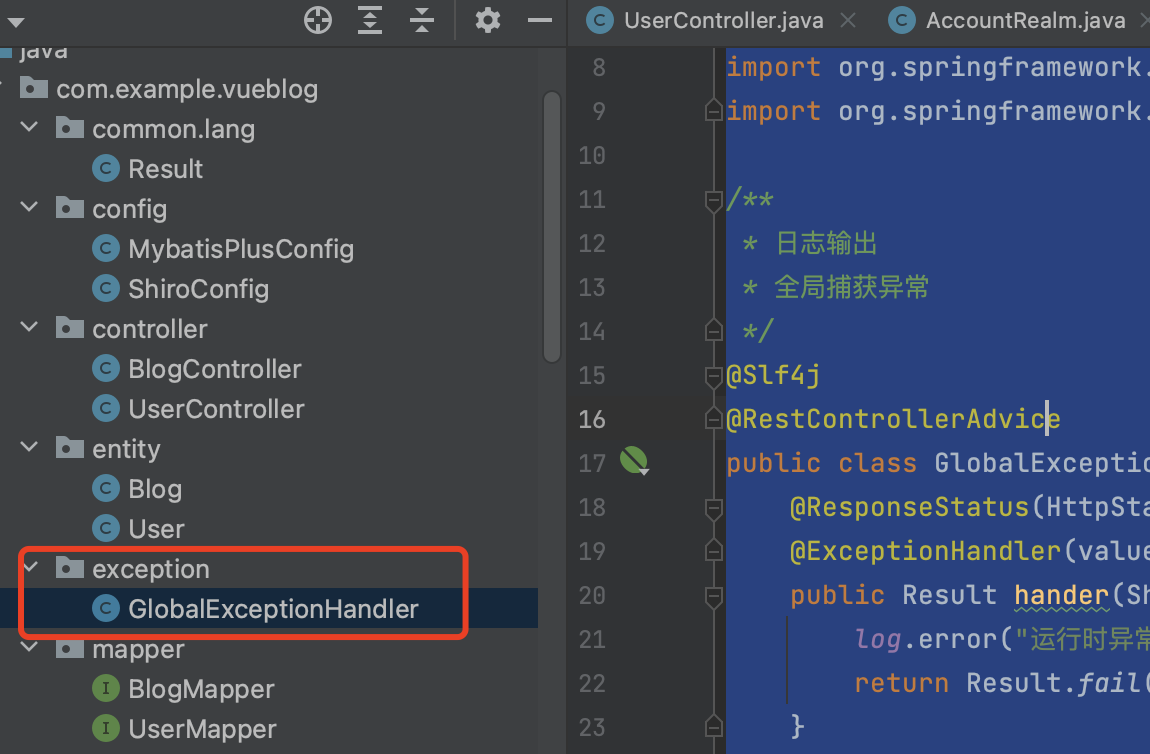

创建GlobalExceptionHandler 类

image-20230719111131409

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
package com.example.vueblog.exception;

import com.example.vueblog.common.lang.Result;
import lombok.extern.slf4j.Slf4j;
import org.apache.shiro.ShiroException;
import org.springframework.http.HttpStatus;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.ResponseStatus;
import org.springframework.web.bind.annotation.RestControllerAdvice;

/**
 * 日志输出
 * 全局捕获异常
 */
@Slf4j
@RestControllerAdvice
public class GlobalExceptionHandler {
    @ResponseStatus(HttpStatus.UNAUTHORIZED)    //因为前后端分离 返回一个状态 一般是401 没有权限
    @ExceptionHandler(value = ShiroException.class) //捕获运行时异常ShiroException是大部分异常的父类
    public Result hander(ShiroException e){
        log.error("运行时异常-----{}",e);
        return Result.fail(401,e.getMessage(), null);
    }
    @ResponseStatus(HttpStatus.BAD_REQUEST)
    @ExceptionHandler(value = RuntimeException.class)
    public Result hander(RuntimeException e){
        log.error("运行时异常-----{}",e);
        return Result.fail(e.getMessage());
    }




}

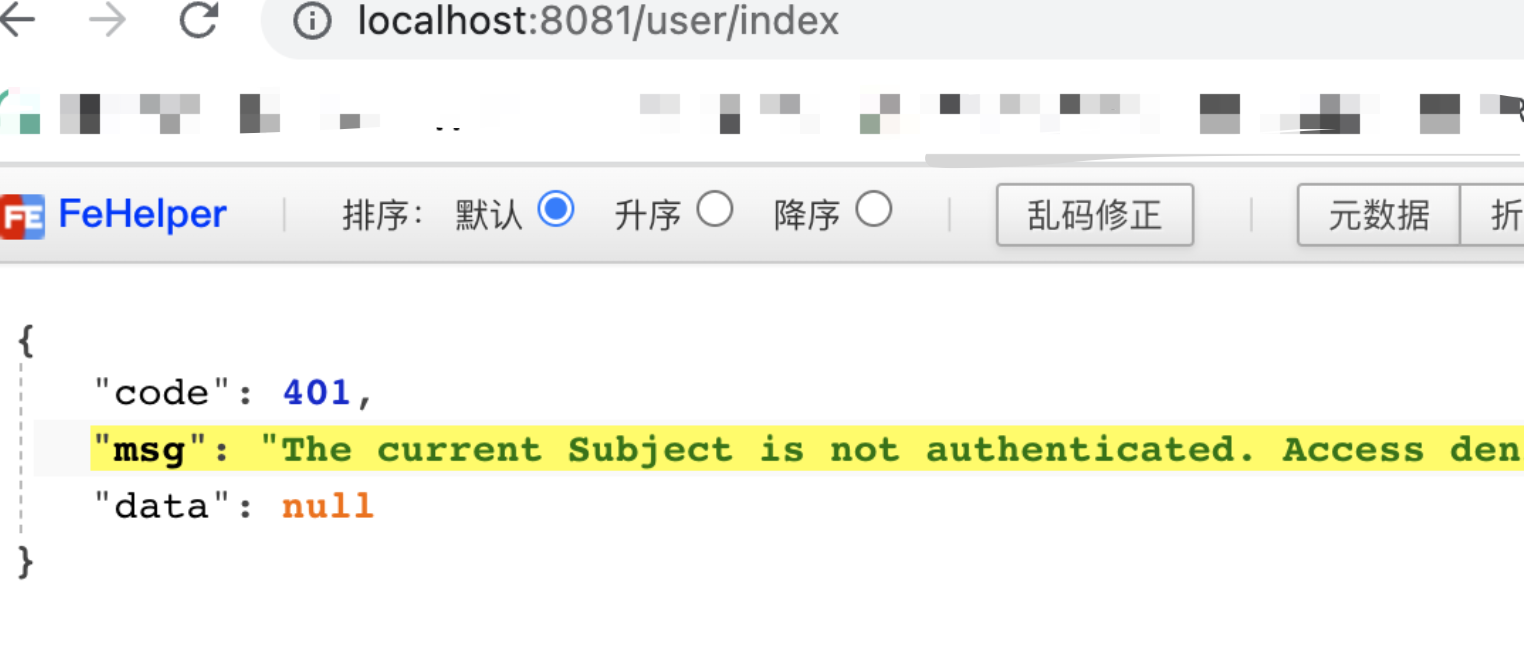

然而我们运行测试发现并没有拦截,因为我们没有进行登录拦截

image-20230720190041973

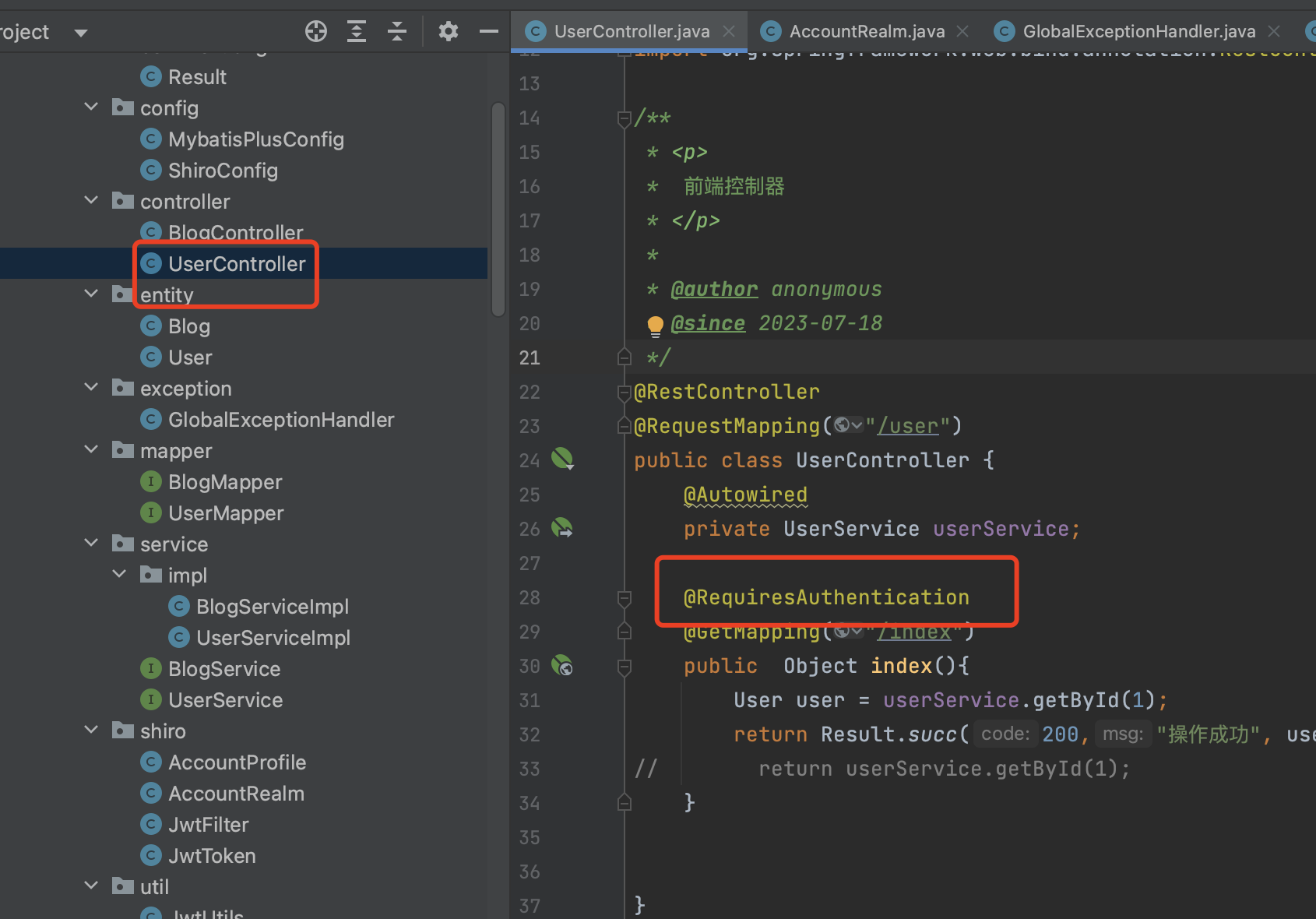

@RequiresAuthentication//登录拦截注解

image-20230719111806870

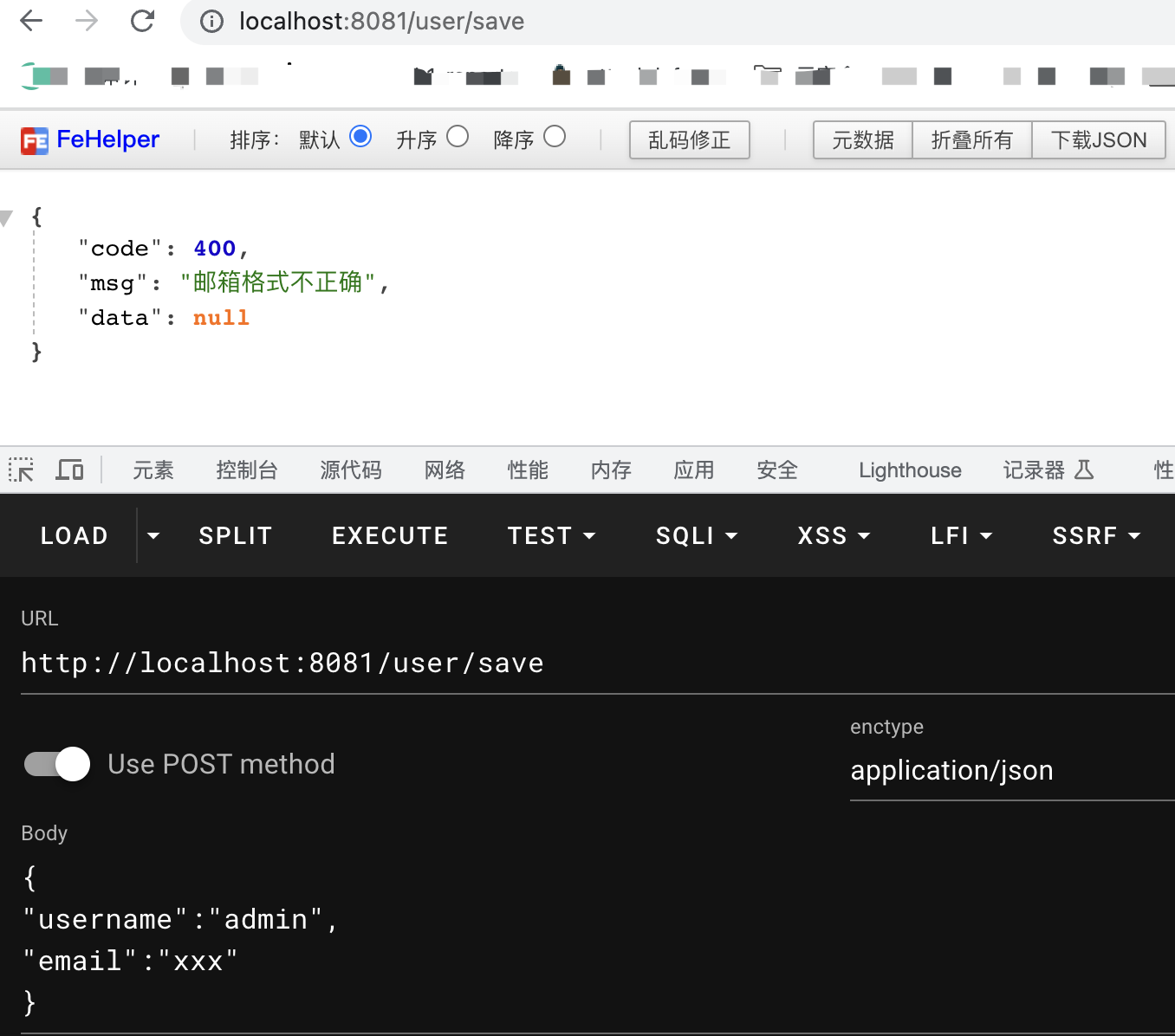

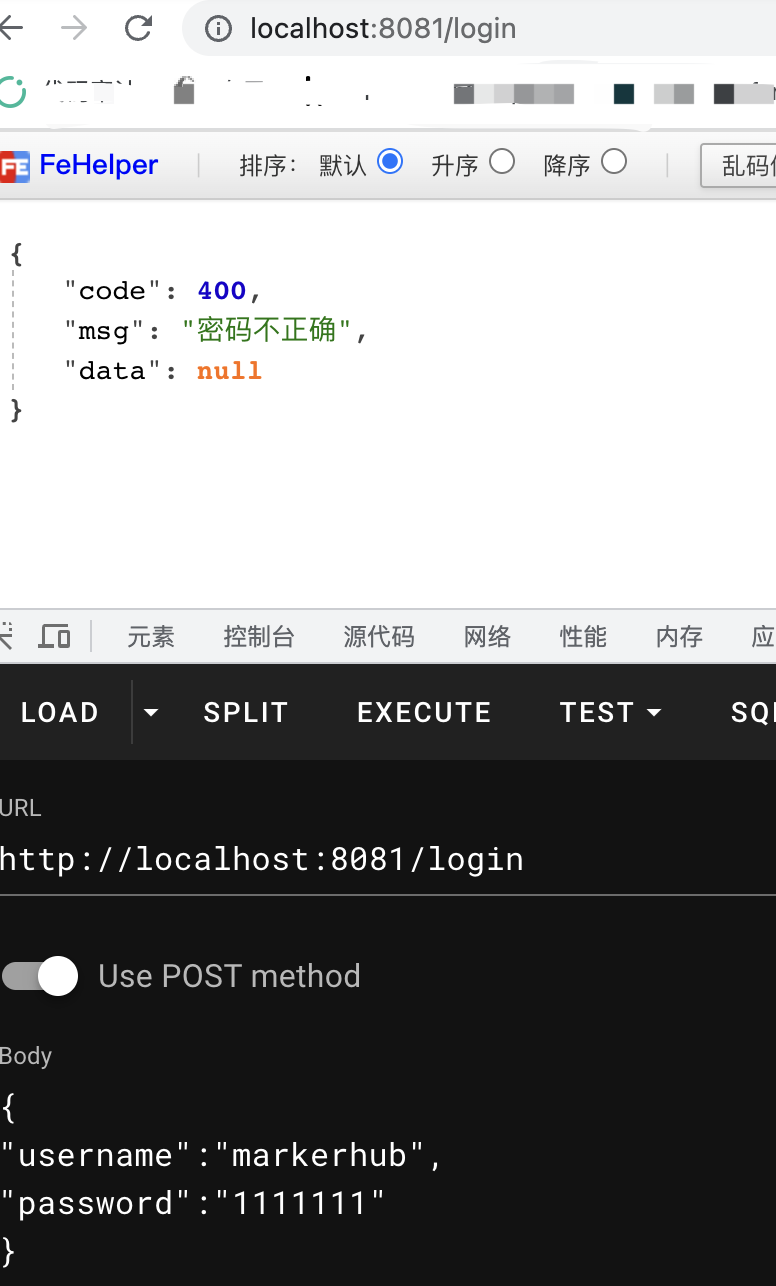

运行效果:

image-20230720190109332

六、实体校验

当我们表单数据提交的时候,前端的校验我们可以使用一些类似于jQuery Validate等js插件实现,而后端我们可以使用Hibernate validatior来做校验。 我们使用springboot框架作为基础,那么就已经自动集成了Hibernate validatior。(校验登录非空等等)

0.首先添加依赖

在pom.xml中

1
2
3
4
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-validation</artifactId>
		</dependency>

1.首先在实体的属性上添加对应的校验规则

User实体类中

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
package com.example.vueblog.entity;

import com.baomidou.mybatisplus.annotation.TableName;
import com.baomidou.mybatisplus.annotation.IdType;
import com.baomidou.mybatisplus.annotation.TableId;
import java.time.LocalDateTime;
import java.io.Serializable;
import lombok.Data;
import lombok.EqualsAndHashCode;
import lombok.experimental.Accessors;

import javax.validation.constraints.Email;
import javax.validation.constraints.NotBlank;

/**
 * <p>
 *
 * </p>
 *
 * @author anonymous
 * @since 2023-07-18
 */
@Data
@EqualsAndHashCode(callSuper = false)
@Accessors(chain = true)
@TableName("m_user")
public class User implements Serializable {

    private static final long serialVersionUID = 1L;

    @TableId(value = "id", type = IdType.AUTO)
    private Long id;

    @NotBlank(message = "昵称不能为空")
    private String username;

    private String avatar;

    @NotBlank(message = "邮箱不能为空")
    @Email(message = "邮箱格式不正确")
    private String email;

    private String password;

    private Integer status;

    private LocalDateTime created;

    private LocalDateTime lastLogin;


}

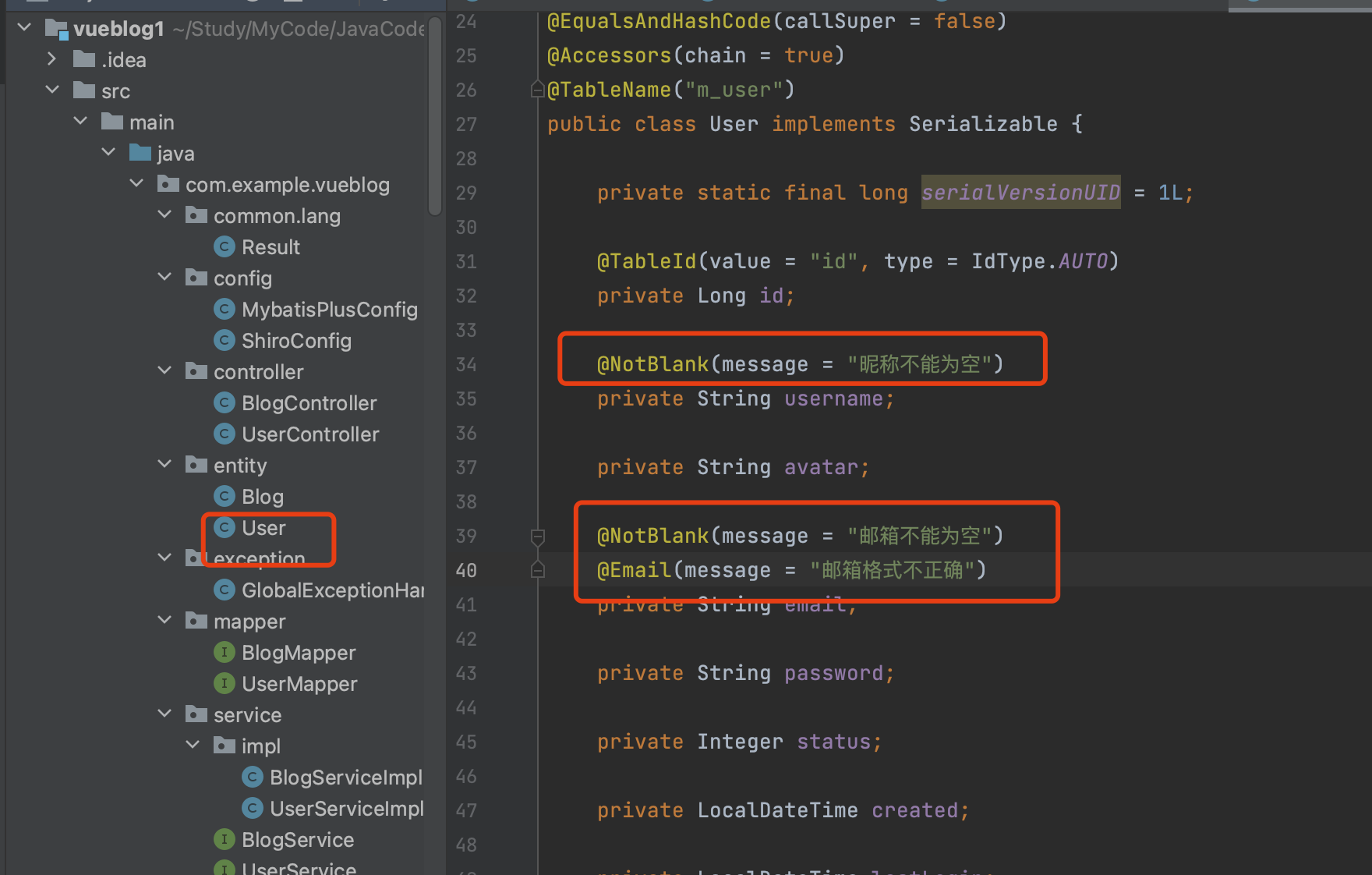

image-20230719150307623

2.在userController类中写一个方法测试

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
package com.example.vueblog.controller;


import com.example.vueblog.common.lang.Result;
import com.example.vueblog.entity.User;
import com.example.vueblog.service.UserService;
import org.apache.shiro.authz.annotation.RequiresAuthentication;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.validation.annotation.Validated;
import org.springframework.web.bind.annotation.*;

/**
 * <p>
 *  前端控制器
 * </p>
 *
 * @author anonymous
 * @since 2023-07-18
 */
@RestController
@RequestMapping("/user")
public class UserController {
    @Autowired
    private UserService userService;

    @RequiresAuthentication
    @GetMapping("/index")
    public  Object index(){
        User user = userService.getById(1);
        return Result.succ(200,"操作成功", user);
//        return userService.getById(1);
    }

    /**
     *  @RequestBody主要用来接受前端传递给后端的json字符串中数据(请求体数据)。
     *  前端使用POST提交(因为GET无请求体)
     *  @RequestBody和@RequestParam()可以同时使用,但是@RequestBody最多有一个而@RequestParam可以有多个
     *  @Validated注解用于检查user中填写的规则,如果不满足则抛出异常。可以在GlobalExceptionHandler中捕获此异常 进行自定义返回信息
     * @param user
     * @return
     */
    @PostMapping("/save")
    public  Result save(@Validated @RequestBody User user){

        return Result.succ(user);
    }


}

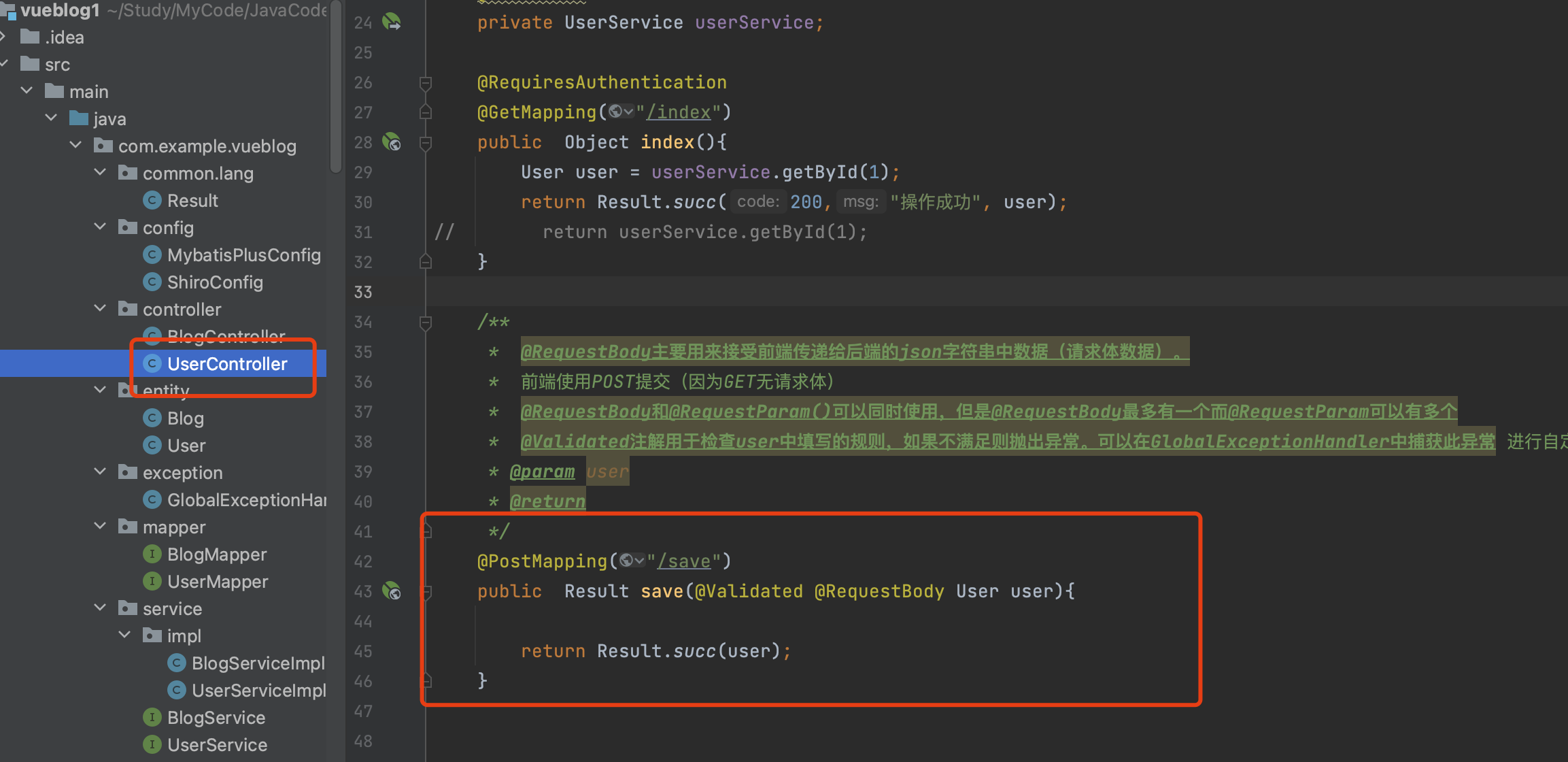

image-20230719151010139

3.定义捕获异常返回处理

在捕获异常 GlobalExceptionHandler类中修改如下:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
    /**
     * 实体校验异常
     * MethodArgumentNotValidException捕获实体校验异常
     */
    @ResponseStatus(HttpStatus.BAD_REQUEST) //因为前后端分离 返回一个状态
    @ExceptionHandler(value =  MethodArgumentNotValidException.class)//捕获运行时异常
    public Result handler(MethodArgumentNotValidException e){
        log.error("实体捕获异常  :-----------------{}",e);
        BindingResult bindingException = e.getBindingResult();
        //多个异常顺序抛出异常,让返回的异常信息简短
        ObjectError objectError = bindingException.getAllErrors().stream().findFirst().get();
        return Result.fail(objectError.getDefaultMessage());
    }

image-20230719151616610

测试

image-20230720190146868

七、解决跨域问题

因为是前后端分离,所以跨域问题是避免不了的,我们直接在后台进行全局跨域处理:

1.路径com.example.vuehub.config.CorsConfig

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
package com.example.vueblog.config;


import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.CorsRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;

/**
 * 解决跨域问题
 */
@Configuration
public class CorsConfig implements WebMvcConfigurer {
    @Override
    public void addCorsMappings(CorsRegistry registry) {
        registry.addMapping("/**")
//                .allowedOrigins("*") SpringBoot升级2.4.0之后,跨域配置中的.allowedOrigins不再可用,将配置中的.allowedOrigins替换成.allowedOriginPatterns即可。
                .allowedOriginPatterns("*")
                .allowedMethods("GET", "HEAD", "POST", "PUT", "DELETE", "OPTIONS")
                .allowCredentials(true)
                .maxAge(3600)
                .allowedHeaders("*");
    }
}

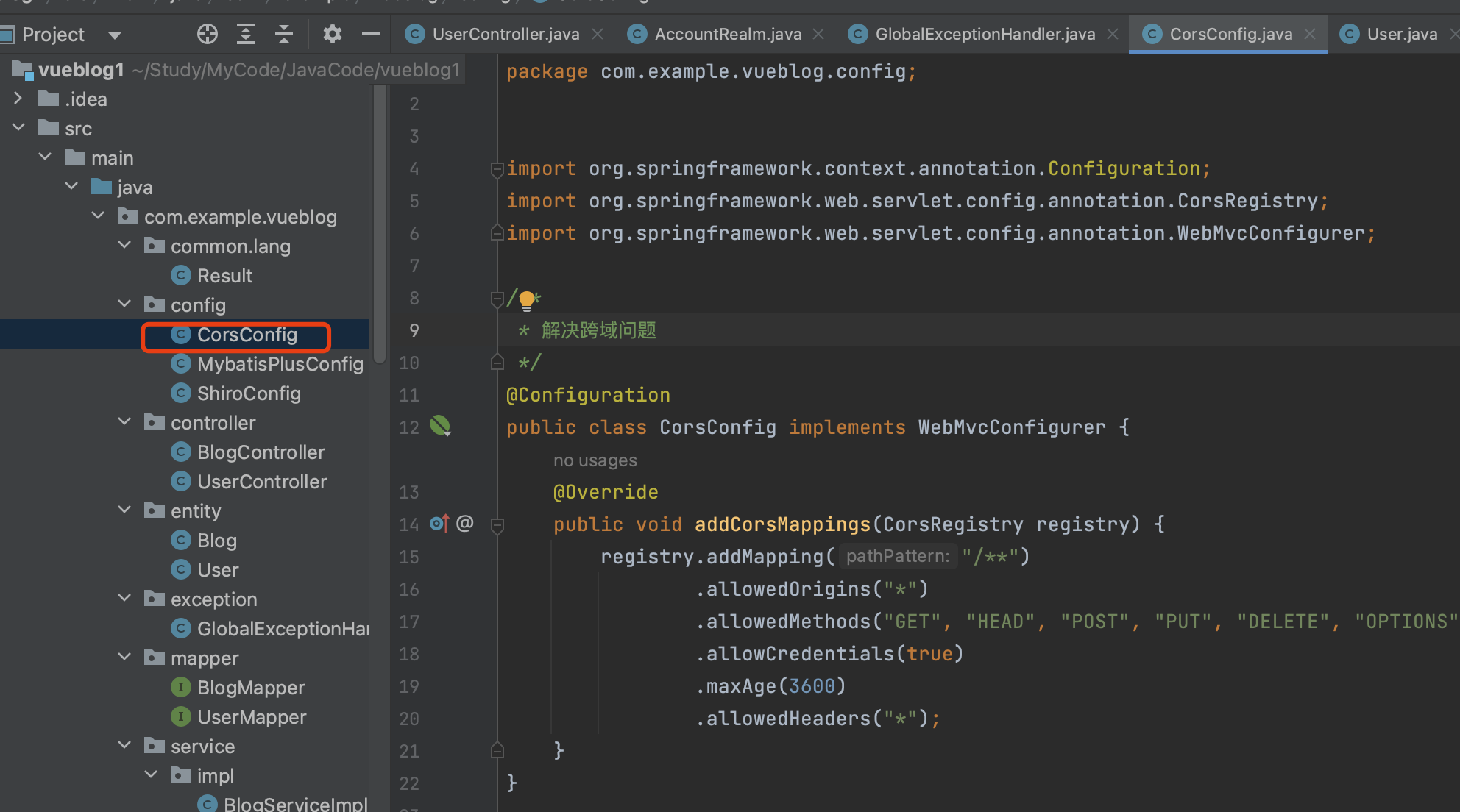

image-20230719152317557

注意:此配置是配置到confroller的,但是在confroller之前是经过jwtFilter的,所以在进行访问之前也配置一下Filter的跨域问题

2.jwtFilter进行跨域处理配置:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
   /**
    * 对跨域提供支持
    * @param request
    * @param response
    * @return
    * @throws Exception
    */
   @Override
   protected boolean preHandle(ServletRequest request, ServletResponse response) throws Exception {
       HttpServletRequest httpServletRequest = WebUtils.toHttp(request);
       HttpServletResponse httpServletResponse = WebUtils.toHttp(response);
       httpServletResponse.setHeader("Access-control-Allow-Origin", httpServletRequest.getHeader("Origin"));
       httpServletResponse.setHeader("Access-Control-Allow-Methods", "GET,POST,OPTIONS,PUT,DELETE");
       httpServletResponse.setHeader("Access-Control-Allow-Headers", httpServletRequest.getHeader("Access-Control-Request-Headers"));
       // 跨域时会首先发送一个OPTIONS请求,这里我们给OPTIONS请求直接返回正常状态
       if (httpServletRequest.getMethod().equals(RequestMethod.OPTIONS.name())) {
           httpServletResponse.setStatus(org.springframework.http.HttpStatus.OK.value());
           return false;
       }
       return super.preHandle(request, response);
   }

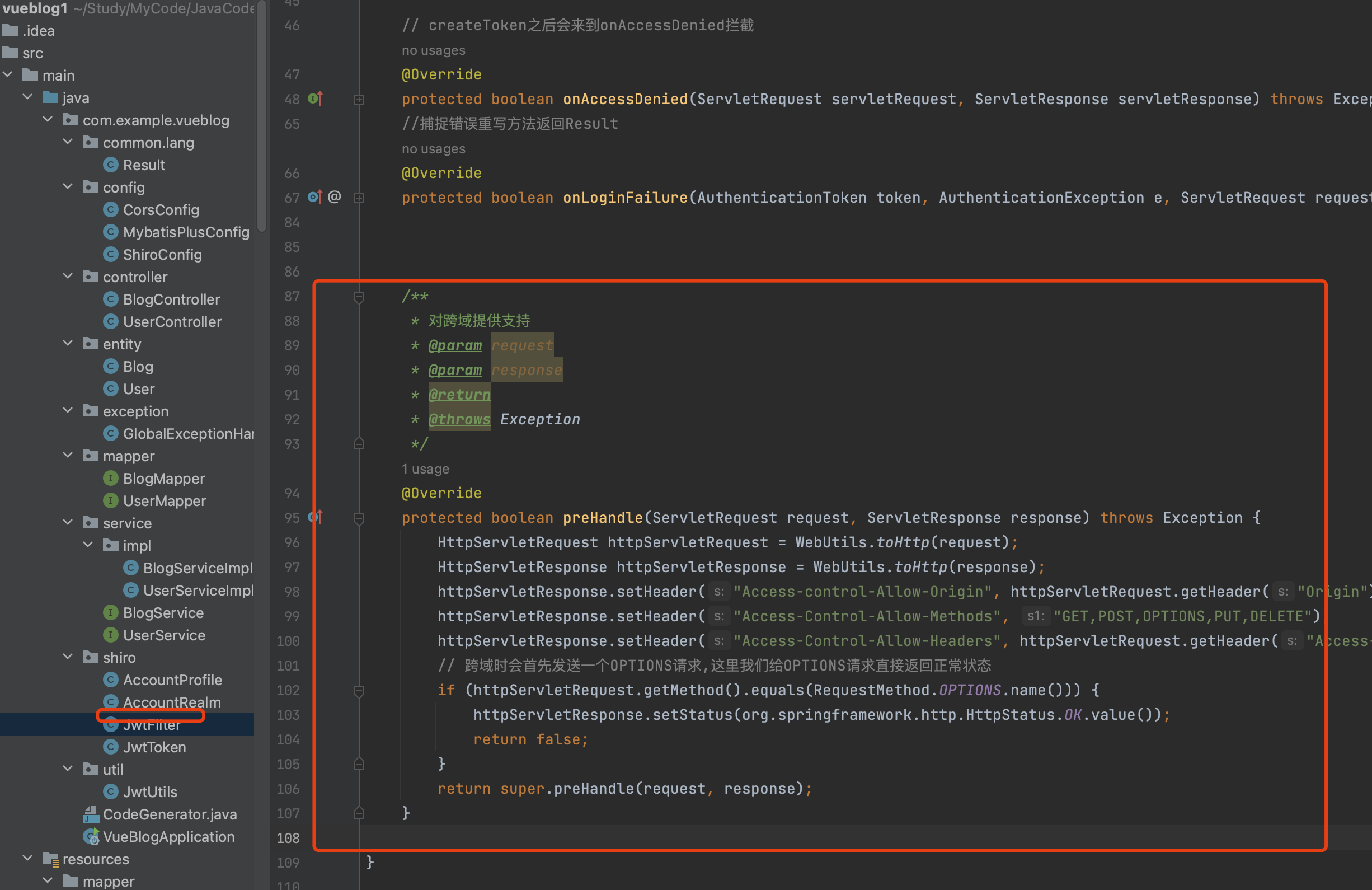

image-20230719152612941

由于我们的接口比较简单,所以就不继承swagger2了

—-基本框架已经搭建完成—–

八、登录接口开发

  • 创建LoginDto

因为dto是要提供给service层需要的数据,是从vo转换来的。

com.example.vueblog.common.dto

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
package com.example.vueblog.common.lang.dto;

import lombok.Data;

import javax.validation.constraints.NotBlank;
import java.io.Serializable;

@Data
public class LoginDto implements Serializable {

    @NotBlank(message = "用户名不能为空")
    private String username;
    @NotBlank(message = "密码不能为空")
    private String password;
}

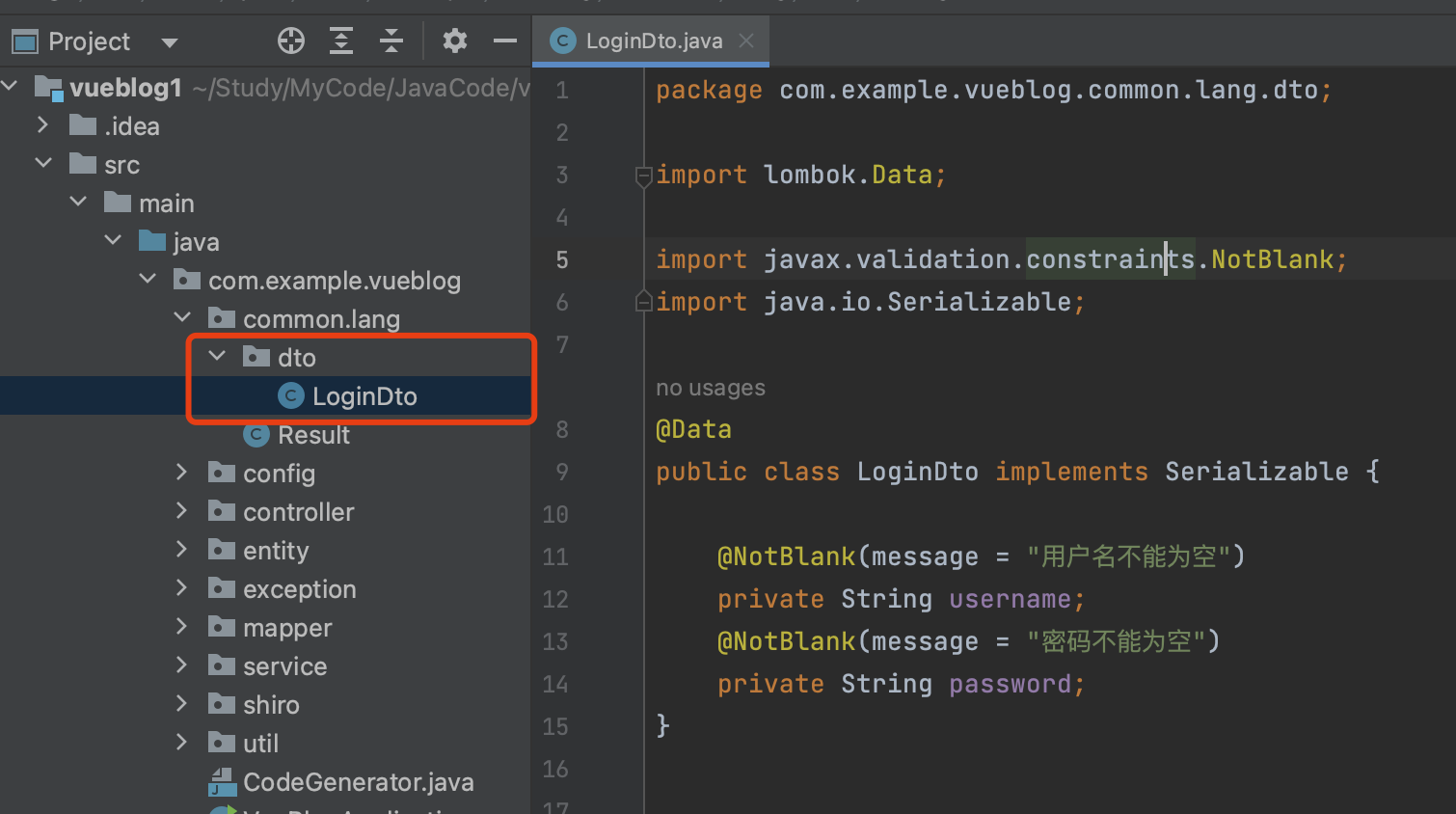

image-20230719155558499

  • 在GlobalExceptionHandler类中增加断言异常

com/example/vueblog/exception/GlobalExceptionHandler.java

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
    /**
     * 断言异常
     * @param e
     * @return
     */
    @ResponseStatus(HttpStatus.BAD_REQUEST)
    @ExceptionHandler(value = IllegalArgumentException.class)
    public Result handler(IllegalArgumentException e){
        log.error("Assert异常:------------------>{}",e);
        return Result.fail(e.getMessage());
    }
  • 创建AccountController类

登录和退出逻辑

com/example/vueblog/controller/AccountController.java

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
package com.example.vueblog.controller;

import cn.hutool.core.lang.Assert;
import cn.hutool.core.map.MapUtil;
import cn.hutool.crypto.SecureUtil;
import com.baomidou.mybatisplus.core.conditions.query.QueryWrapper;
import com.example.vueblog.common.lang.Result;
import com.example.vueblog.common.lang.dto.LoginDto;
import com.example.vueblog.entity.User;
import com.example.vueblog.service.UserService;
import com.example.vueblog.util.JwtUtils;
import org.apache.shiro.SecurityUtils;
import org.apache.shiro.authz.annotation.RequiresAuthentication;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.validation.annotation.Validated;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import javax.servlet.http.HttpServletResponse;

@RestController
public class AccountController {
    @Autowired
    UserService userService;

    @Autowired
    JwtUtils jwtUtils;

    public Result login(@Validated @RequestBody LoginDto loginDto, HttpServletResponse response){
        User user = userService.getOne(new QueryWrapper<User>().eq("userrname",loginDto.getUsername()));
        Assert.notNull(user,"用户不存在");
        //判断账号密码是否错误 因为是md5加密所以这里md5判断
        if(!user.getPassword().equals(SecureUtil.md5(loginDto.getPassword()))){
            //密码不同则抛出异常
            return Result.fail("密码不正确");
        }
        String jwt = jwtUtils.generateToken(user.getId());
        //将token 放在我们的header里面
        response.setHeader("Authorization",jwt);
        response.setHeader("Access-control-Expose-Headers","Authorization");

        return Result.succ(MapUtil.builder()
                .put("id", user.getId())
                .put("username",user.getUsername())
                .put("avatar",user.getAvatar())
                .put("email",user.getEmail()).map()
        );

    }

    //需要认证权限才能退出登录
    @RequiresAuthentication
    @RequestMapping("/logout")
    public Result logout() {
        //退出登录
        SecurityUtils.getSubject().logout();
        return null;
    }



}

问题,可能会遇到这个报错:Caused by: java.lang.ClassNotFoundException: javax.xml.bind.DatatypeConverter

其主要原因,主要是 因为 Spring Boot 版本过高了,需要我们给它指定「jaxb」的版本即可。

在pom.xml中添加依赖:

1
2
3
4
5
6
<!-- https://mvnrepository.com/artifact/javax.xml.bind/jaxb-api -->
<dependency>
    <groupId>javax.xml.bind</groupId>
    <artifactId>jaxb-api</artifactId>
    <version>2.3.1</version>
</dependency>

测试效果:

image-20230720190217446

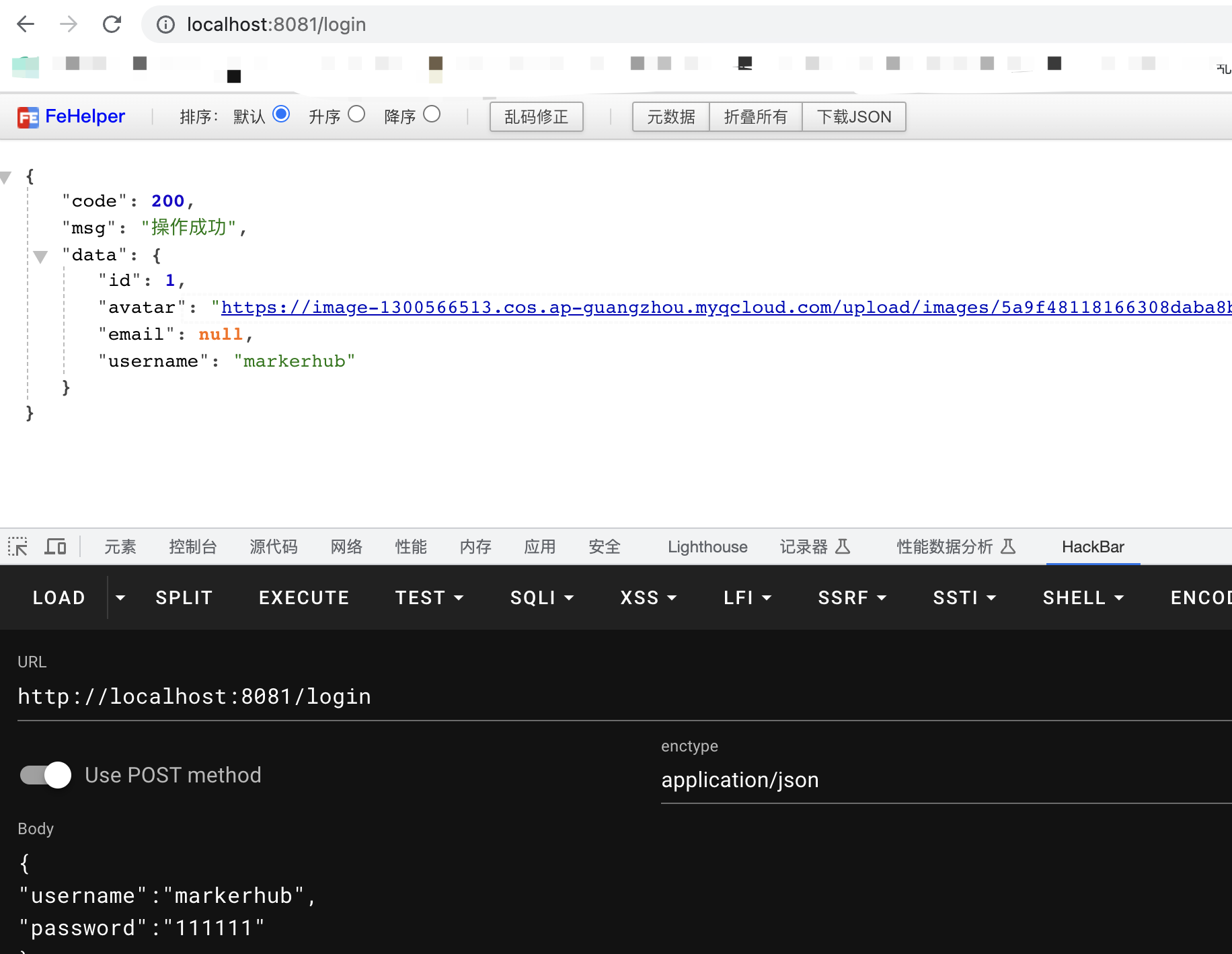

image-20230720190243307

这里根本没去调用shiro的登录方法吧,写的jwtFilter也根本不会去走………..

此处登陆时发现,jdk版本大于8时会报 java.lang.NoClassDefFoundError: javax/xml/bind/DatatypeConverter

九、博客接口开发

列表、详情、编辑功能

没有做删除功能,自己做

Blog的实体类字段也加上验证:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
package com.example.vueblog.entity;

import com.baomidou.mybatisplus.annotation.TableName;
import com.baomidou.mybatisplus.annotation.IdType;
import com.baomidou.mybatisplus.annotation.TableId;
import java.time.LocalDateTime;
import java.io.Serializable;
import lombok.Data;
import lombok.EqualsAndHashCode;

import javax.validation.constraints.NotBlank;

/**
 * <p>
 *
 * </p>
 *
 * @author anonymous
 * @since 2023-07-18
 */
@Data
@EqualsAndHashCode(callSuper = false)
@TableName("m_blog")
public class Blog implements Serializable {

    private static final long serialVersionUID = 1L;

    @TableId(value = "id", type = IdType.AUTO)
    private Long id;

    private Long userId;

    @NotBlank(message = "标题不能为空")
    private String title;

    @NotBlank(message = "摘要不能为空")
    private String description;

    @NotBlank(message = "内容不能为空")
    private String content;

    private LocalDateTime created;

    private Integer status;


}

创建工具类ShiroUtil

com/example/vueblog/util/ShiroUtil.java

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
package com.example.vueblog.util;

import com.example.vueblog.shiro.AccountProfile;
import org.apache.shiro.SecurityUtils;

public class ShiroUtil {
    public static AccountProfile getProfile(){

        return (AccountProfile) SecurityUtils.getSubject().getPrincipal();
    }
}

完善BlogController类

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
package com.example.vueblog.controller;


import cn.hutool.core.bean.BeanUtil;
import cn.hutool.core.lang.Assert;
import com.baomidou.mybatisplus.core.metadata.IPage;
import com.baomidou.mybatisplus.extension.plugins.pagination.Page;
import com.example.vueblog.common.lang.Result;
import com.example.vueblog.entity.Blog;
import com.example.vueblog.service.BlogService;
import com.example.vueblog.util.ShiroUtil;
import org.apache.shiro.authz.annotation.RequiresAuthentication;
import org.springframework.validation.annotation.Validated;
import org.springframework.web.bind.annotation.*;
import com.baomidou.mybatisplus.core.conditions.query.QueryWrapper;

import org.springframework.beans.factory.annotation.Autowired;

import java.time.LocalDateTime;


/**
 * <p>
 *  前端控制器
 * </p>
 *
 * @author anonymous
 * @since 2023-07-18
 */
@RestController
@RequestMapping("/blog")
public class BlogController {
    @Autowired
    BlogService blogService;

    //木有值默认为1
    @GetMapping("/blogs")
    public Result list(@RequestParam(defaultValue = "1") Integer currentPage){
        Page page = new Page(currentPage, 5);
        IPage pageData = blogService.page(page, new QueryWrapper<Blog>().orderByDesc("created"));
        return Result.succ(pageData);
    }

    //查看文章详情
    //@PathVariable动态路由
    @GetMapping("/blog/{id}")
    public Result detail(@PathVariable Long id){
        Blog blog = blogService.getById(id);        //判断是否为空 为空则断言异常
        Assert.notNull(blog,"该博客已被删除");
        return Result.succ(blog);

    }

    //@Validated校验
    //@RequestBody
    //添加删除  木有id则添加 有id则编辑
    @RequiresAuthentication  //需要认证之后才能操作
    @PostMapping("/blog/edit")
    public Result edit(@Validated @RequestBody Blog blog){
        //一个空对象用于赋值
        Blog temp = null;
        //如果有id则是编辑
        if(blog.getId() != null){
            temp = blogService.getById(blog.getId());//将数据库的内容传递给temp
            //只能编辑自己的文章
            Assert.isTrue(temp.getUserId().longValue()== ShiroUtil.getProfile().getId().longValue(),"没有编辑权限");

        }else{
            temp = new Blog();
            temp.setUserId(ShiroUtil.getProfile().getId());
            temp.setCreated(LocalDateTime.now());
            temp.setStatus(0);
        }
        //将blog的值赋给temp 忽略 id userid created status 引用于hutool
        BeanUtil.copyProperties(blog,temp,"id","userId","created","status");
        blogService.saveOrUpdate(temp);

        return Result.succ(null);
    }

    //删除文章
    //@PathVariable动态路由
    @RequiresAuthentication  //需要认证之后才能操作
    @PostMapping("/blogdel/{id}")
    public Result edit(@PathVariable Long id){
        //判断是否是自己的文章(文章id属于自己)
        Assert.isTrue(blogService.getById(id).getUserId().longValue() == ShiroUtil.getProfile().getId().longValue(),"没有删除权限");

        boolean b = blogService.removeById(id);
        //判断是否为空 为空则断言异常
        if(b==true){
            return Result.succ("文章删除成功");
        }else{
            return Result.fail("文章删除失败");
        }
    }




    }
  • 查询测试:

image-20230720190304997

image-20230720190327330

  • 新增编辑测试:

先登录,获取登录的token再将其添加到请求头,去测试后面的授权功能

image-20230719173237757

image-20230719173244908

新增:

1
2
3
4
5
{
	"title":"标题测试",
	"description":"描述测试哦奥德萨",
	"content":"内容测试阿斯顿撒哦i等哈送到哈桑"
}

image-20230720190400649

编辑:

1
2
3
4
5
6
{
	"id":21,
	"title":"标题测试修改",
	"description":"描述测试哦奥德萨",
	"content":"内容测试阿斯顿撒哦i等哈送到哈桑"
}
  • 文章删除

image-20230720190425046

前端

接下来,我们来完成vueblog前端的部分功能。可能会使用的到技术如下: vue element-ui axios mavon-editor markdown-it github-markdown-css

十、环境准备

1.首先我们上node.js官网(https://nodejs.org/zh-cn/),下载最新的长期版本,直接运行安装完成之后,我们就已经具备了node和npm的环境啦。

2.安装完成之后检查下版本信息:

1
2
node -v
npm -v

3.安装vue环境

1
2
3
4
5
6
7
8
# 可以配置淘宝npm源
npm get registry #查看原本镜像
npm config set registry http://registry.npm.taobao.org/ #修改成淘宝镜像


# 脚手架vue-cli
# 官方文档:https://cli.vuejs.org/#getting-started
sudo npm install -g @vue/cli

十一、新建项目

新建项目:

1
2
3
4
5
6
7
8
9
# 切换到创建项目的目录下(默认会创建一个hello示例项目)
vue create vueblog-vue
# 然后会让你选择vue2还是vue3
# 会自动生成一个demo项目目录

# 切换到demo目录下
cd vueblog-vue
# 运行demo
npm run serve

用vscode打开项目即可

Note:vue create 创建项目报错:command failed: npm install –loglevel error

image-20230719193659165

解决办法:

清空npm的缓存

1
sudo npm cache clean --force

或者在文件目录C:\Users下查找 .npmrc文件,并删除

项目架构:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
├── README.md            项目介绍
├── index.html           入口页面
├── build              构建脚本目录
│  ├── build-server.js         运行本地构建服务器,可以访问构建后的页面
│  ├── build.js            生产环境构建脚本
│  ├── dev-client.js          开发服务器热重载脚本,主要用来实现开发阶段的页面自动刷新
│  ├── dev-server.js          运行本地开发服务器
│  ├── utils.js            构建相关工具方法
│  ├── webpack.base.conf.js      wabpack基础配置
│  ├── webpack.dev.conf.js       wabpack开发环境配置
│  └── webpack.prod.conf.js      wabpack生产环境配置
├── config             项目配置
│  ├── dev.env.js           开发环境变量
│  ├── index.js            项目配置文件
│  ├── prod.env.js           生产环境变量
│  └── test.env.js           测试环境变量
├── mock              mock数据目录
│  └── hello.js
├── package.json          npm包配置文件,里面定义了项目的npm脚本,依赖包等信息
├── src               源码目录
│  ├── main.js             入口js文件
│  ├── app.vue             根组件
│  ├── components           公共组件目录
│  │  └── title.vue
│  ├── assets             资源目录,这里的资源会被wabpack构建
│  │  └── images
│  │    └── logo.png
│  ├── routes             前端路由
│  │  └── index.js
│  ├── store              应用级数据(state)状态管理
│  │  └── index.js
│  └── views              页面目录
│    ├── hello.vue
│    └── notfound.vue
├── static             纯静态资源,不会被wabpack构建。
└── test              测试文件目录(unit&e2e)
  └── unit              单元测试
    ├── index.js            入口脚本
    ├── karma.conf.js          karma配置文件
    └── specs              单测case目录
      └── Hello.spec.js

十二、安装element-ui和axios

安装element-ui plus

vue3以上得下载element-puls才行

安装:

1
2
3
# 安装
# npm install element-ui --save
npm install element-plus --save

或者如下方式安装(会自动帮助适配版本):

1
2
vue add element-plus
# 参考:https://www.jianshu.com/p/02b8616d4fe6

全局引入:

然后打开main.js,引入依赖

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
import { createApp } from 'vue'
import App from './App.vue'

// 引入element-plus
import ElementPlus from "element-plus"
import "element-plus/dist/index.css"


// 使用element-plus
createApp(App)
    .use(ElementPlus)
    .mount('#app')

按需引入:生产环境建议这种,不建议全局引入

测试:

在App.vue中添加button,查看效果

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
<template>
    <el-row class="mb-4">
        <el-button>Default</el-button>
        <el-button type="primary">Primary</el-button>
        <el-button type="success">Success</el-button>
        <el-button type="info">Info</el-button>
        <el-button type="warning">Warning</el-button>
        <el-button type="danger">Danger</el-button>
    </el-row>
</template>

生效了

image-20230719194923846

安装axios

类似ajax

1
npm install axios --save

后面就可以使用axios.get()发送请求了

十三、页面路由

接下来,我们先定义好路由和页面,因为我们只是做一个简单的博客项目,页面比较少,所以我们可以直接先定义好,然后在慢慢开发,这样需要用到链接的地方我们就可以直接可以使用: 我们在views文件夹下定义几个页面:

  • BlogDetail.vue(博客详情页)
  • BlogEdit.vue(编辑博客)
  • Blogs.vue(博客列表)
  • Login.vue(登录页面)

可以配置插件:VueHelper(新建vue项目 最上方输入vuet按键tab可直接生成模板)

先新建几个基本页面

注意:每个页面下方
